Weidmuller 2473060000

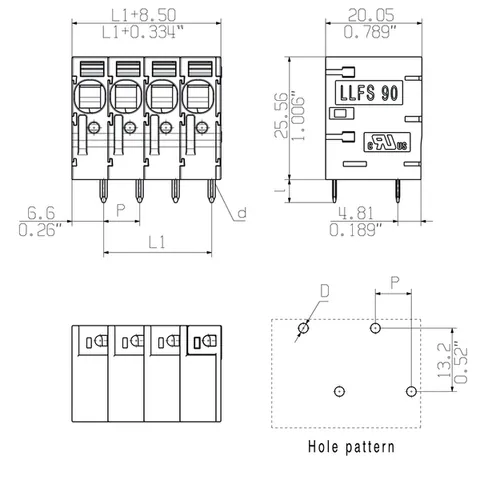

The LLFS 7.50/08/90V 5.0SN BK BX is a printed circuit board terminal designed for efficient connections with a pitch of 7.5 mm. It accommodates up to 8 poles and features a conductor outlet direction of 90 degrees.

With a maximum clamping range of 6 mm² and a solder pin length of 5 mm, it is suitable for use with solid and flexible conductors, ensuring compatibility with wire cross-sections ranging from 0.25 mm² to 6 mm². The connection method is PUSH IN without actuator, facilitating straightforward installations.

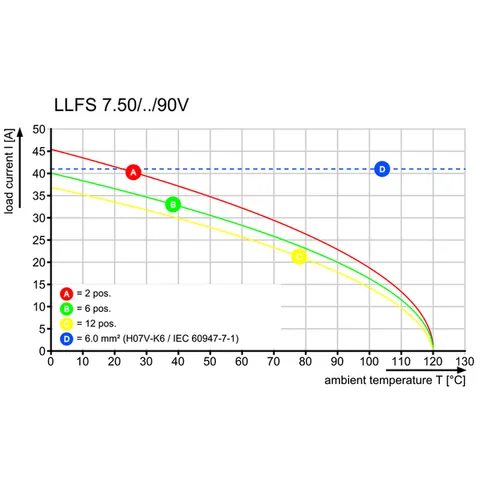

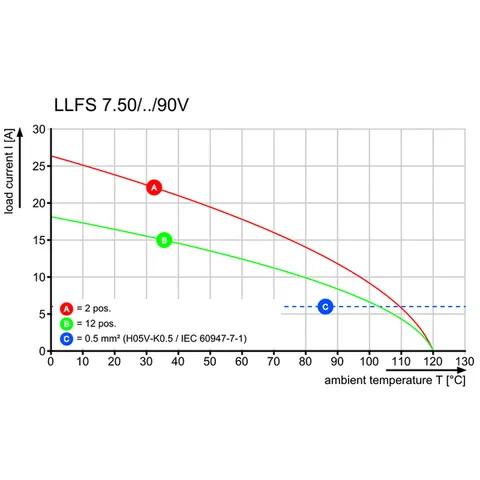

Compliance with IEC 60947-7-1 standards confirms its rated current capability at 37 A and a rated voltage of 600 V. The terminal is constructed from black Wemid (PA) insulating material, rated for operating temperatures from -40 °C to 120 °C, and has a UL 94 flammability rating of V-0.

This component is packaged in a box with dimensions of 210 mm x 210 mm x 45 mm. The product also aligns with certifications such as cURus and has an insulation strength of ≥ 108 Ω, making it suitable for various industrial applications.
