Weidmuller 2529040000

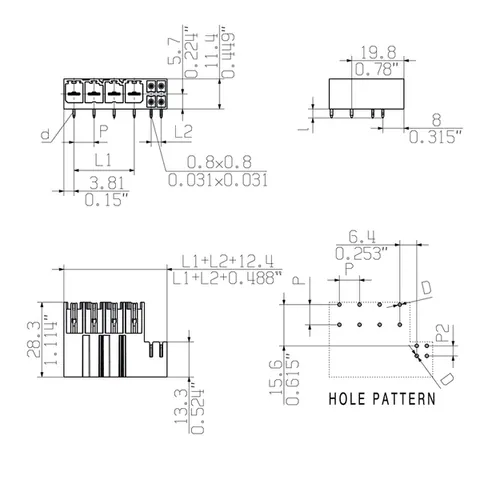

The SV-SMT 7.62HP/02/90G SC/8 2.6SN BX is a male header PCB plug-in connector designed for THT/THR solder connections. It has a compact size with a height of 11.4 mm and a depth of 28.3 mm, making it suitable for various circuit board applications.

With a pitch of 7.62 mm, this connector features two poles and solder pins measuring 2.6 mm in length. Notably, it is rated for a maximum voltage of 600 V and a current rating of up to 33 A depending on the use group as per UL 1059 standards. The connector is constructed from PA GF HT, providing insulation strength of ≥ 108 Ω and a Comparative Tracking Index (CTI) of ≥ 500, ensuring reliable performance in demanding environments.

Operating temperatures range from -50 °C to 130 °C, allowing for versatility in various applications. The touch-safe design adheres to DIN VDE standards, ensuring safety during operation. The connector is also capable of withstanding up to 3 x 1 second pulses at 420 A, demonstrating its durability. Conformity with IPC standards ensures that it meets recognized quality benchmarks.
