Weidmuller 2529400000

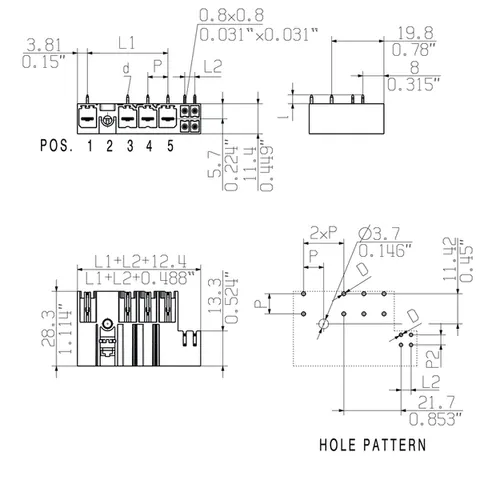

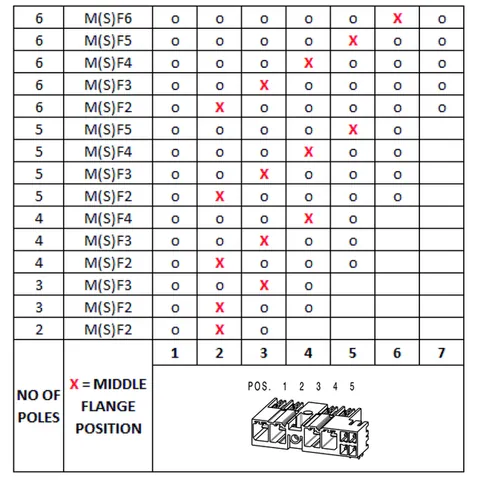

The SV-SMT 7.62HP/03/270MF2 SC/6 2.6SN BX is a male header PCB plug-in connector designed for reliable solder connections. It features a closed side and middle flange, with a pitch of 7.62 mm and three poles. The solder pin length is 2.6 mm and the connector is presented in a black finish.

This component is rated for a voltage of up to 600 V in group D according to UL 1059, with a maximum current rating of 33 A in groups B and C. It meets stringent standards including IEC 60664-1 and IEC 61984, ensuring operational reliability across various conditions. The rated impulse voltage is 6 kV, making it suitable for applications requiring high voltage resilience.

The connector's construction incorporates PA GF HT insulating material with a Comparative Tracking Index (CTI) of ≥ 600, contributing to its durability and performance in demanding environments. It operates efficiently within a temperature range of -50 °C to 130 °C. Additionally, the connector is designed for touch-safe protection according to DIN VDE standards.

For mounting, this connector utilizes THT/THR soldering techniques and is compliant with IPC standards, ensuring compatibility with various PCB designs. Its design also allows for a maximum plugging force of 12 N per pole and features a pull force of 7 N, with a lifespan of up to 25 plugging cycles.
