Weidmuller 2529480000

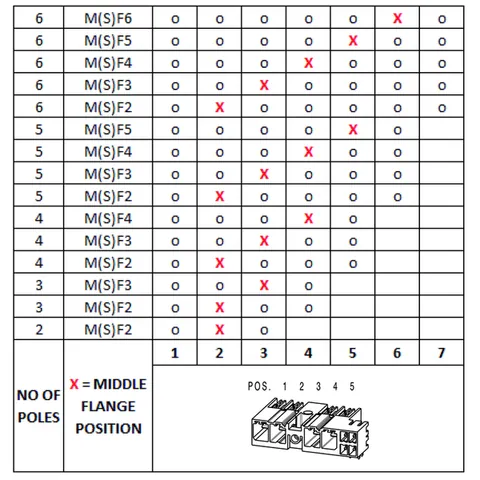

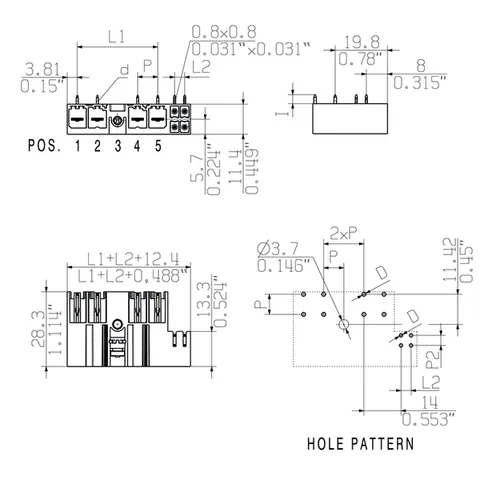

The 7.62 mm PCB plug-in connector is designed for reliable electrical connections with a male header configuration. It supports a closed side and a middle flange, facilitating a total of 5 poles, each with a solder pin length of 2.6 mm. The connector employs THT/THR solder connections, ensuring secure mounting onto the PCB.

Rated according to UL 1059, this connector can handle a maximum voltage of 600 V and current ratings of up to 33 A for specific use groups. It has a clearance distance of at least 6.9 mm and a creepage distance of 9.6 mm, adhering to the necessary safety standards. Furthermore, it is compliant with IEC standards, rated for surge voltage classes and impulse voltages suitable for various environmental conditions.

Constructed from PA GF HT insulating material with a black finish, the connector exhibits a Comparative Tracking Index (CTI) of ≥ 600 and an insulation strength of ≥ 108 Ω. It is rated for operation within a temperature range of -50 °C to 130 °C, making it suitable for diverse applications. The connector's design allows for up to 25 plugging cycles, with a maximum plugging force of 12 N and a pulling force of 7 N per pole.

It belongs to the OMNIMATE Power series BV/SV 7.62HP and is packaged in a box for secure storage and transport. The product complies with the relevant IPC standards, ensuring its quality and suitability for industrial applications.
