Weidmuller 2529510000

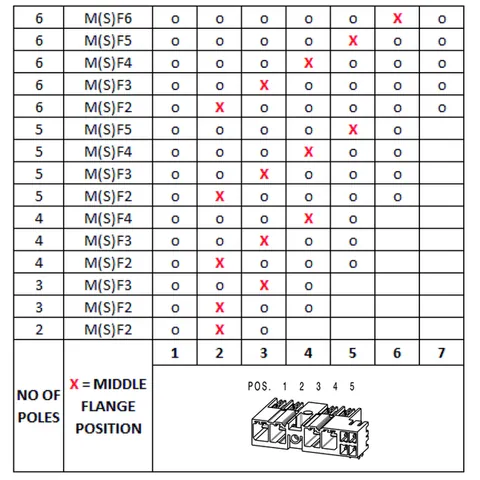

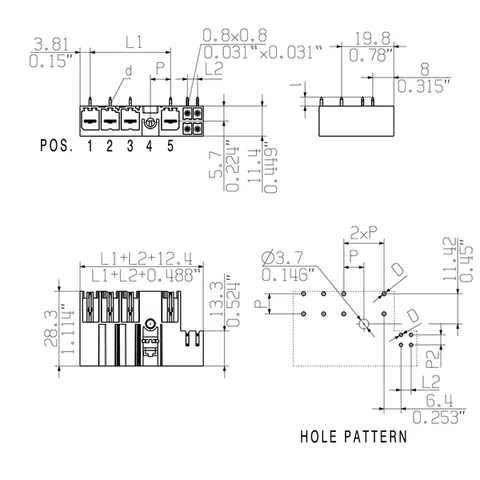

The SV-SMT 7.62HP/05/270MF4 SC/4 2.6SN BX is a PCB plug-in connector characterized by its closed side design and middle flange, which enables effective solder connections via THT/THR methods. With a pitch of 7.62 mm and five poles, this connector supports reliable electrical connections.

It operates within a rated voltage range of 300 V to 600 V depending on the use group, and can handle currents up to 33 A under specified conditions. The connector adheres to UL 1059 standards, ensuring safety and reliability in various applications. The minimum clearance distance is 6.9 mm, while the creepage distance is 9.6 mm, meeting IEC standards for electrical safety.

Constructed from PA GF HT material, the connector exhibits a black color with a UL 94 flammability rating of V-0. It is designed to function optimally across a temperature range of -50 °C to 130 °C. The connector's solder pin length measures 2.6 mm, facilitating easy installation.

Additionally, this connector features a volume resistance of 2.00 mΩ and a maximum plugging force of 12 N per pole. With its ability to be coded and a lifespan rated for 25 plugging cycles, it ensures durability and ease of use in various electronic applications. The product is packaged in a box for protection during transit.
