Weidmuller 2529550000

The SV-SMT 7.62HP/02/270MSF2 SC/6 2.6SN BX is designed for reliable PCB connections with a pitch of 7.62 mm and a total of 2 poles. It utilizes a THT/THR solder connection method, ensuring secure mounting on printed circuit boards. The solder pin length is 2.6 mm, optimized for various applications.

This connector complies with UL 1059 standards, supporting rated voltages of 300 V for groups B and C, and up to 600 V for group D, with a maximum current rating of 33 A across the relevant groups. Additionally, it meets IEC standards, with a rated impulse voltage of 6 kV and a short-time withstand current of 420 A for 1 second, indicating its capability to handle transient conditions effectively.

Constructed from PA GF HT insulating material, the connector features a black color (RAL 9011) and maintains structural integrity across a wide temperature range, from -50 °C to 130 °C. The Comparative Tracking Index (CTI) is ≥ 600, ensuring high resistance to tracking and environmental influences. It has a moisture sensitivity level (MSL) of 3, making it suitable for various operating conditions.

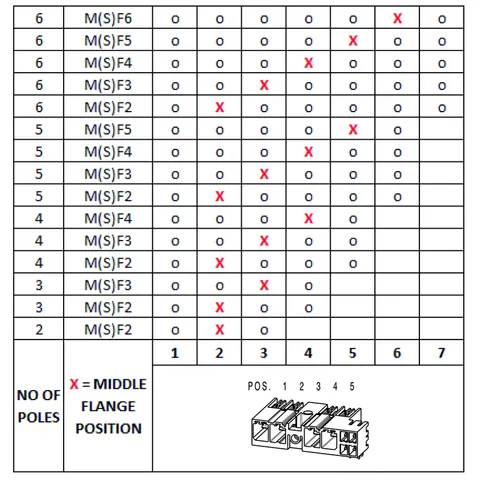

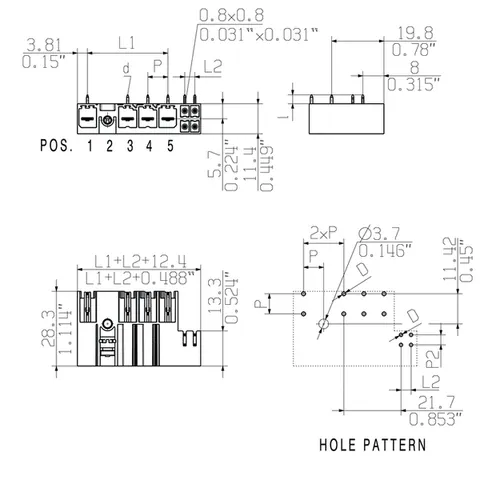

In terms of physical dimensions, it has a height of 11.4 mm and a depth of 28.3 mm, with a net weight of 3.34 g. The connector is designed with touch-safe protection according to DIN VDE 57 106 and IP 20 protection rating, ensuring safety in handling. The tightening torque for the screw flange ranges from 0.2 Nm to 0.3 Nm, facilitating secure assembly.

For additional context, this product belongs...
