Weidmuller 2580390000

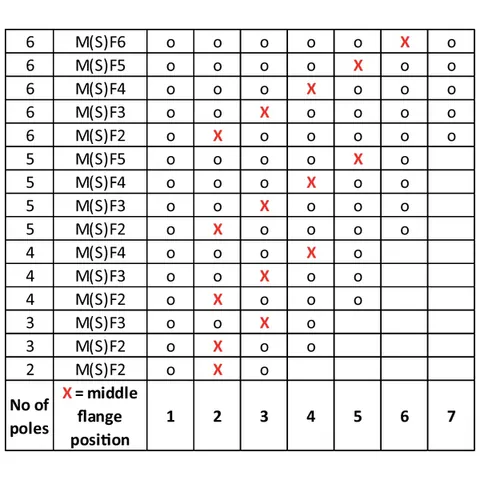

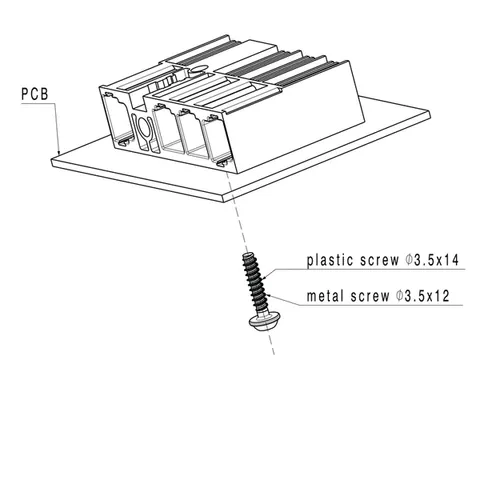

The 10.16mm Male Header Connector is designed for PCB applications, featuring a closed side and a middle flange with a 90° outgoing elbow. The connector supports a THT solder connection, with a solder pin length of 3.5 mm and a total of 3 poles. It meets various electrical standards, including rated voltage capabilities of up to 600 V and rated current levels reaching 60 A, depending on the use group as classified under UL 1059.

With an operating temperature range from -50 °C to 120 °C, this connector is built from PBT GF insulating material, which provides significant protection with a Comparative Tracking Index (CTI) of ≥ 200. The connector is also characterized by a volume resistance of 2.00 mΩ and ensures touch safety according to DIN VDE standards, achieving an IP20 rating when plugged.

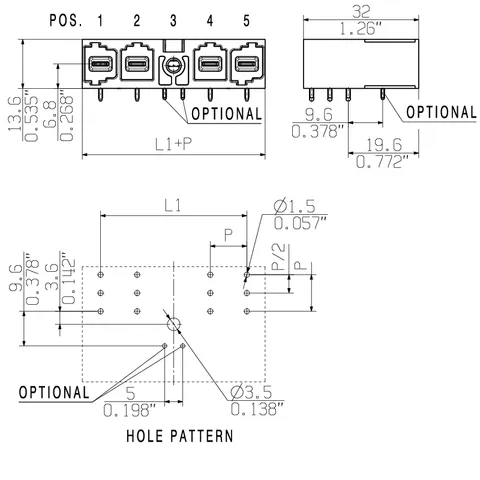

In addition, the connector is compliant with IEC 60664-1 and IEC 61984 standards, offering a rated impulse voltage up to 8 kV under certain pollution degrees. The physical dimensions include a pitch of 10.16 mm and a net weight of 14.055 g, packaged in a box measuring 350 mm x 135 mm x 47 mm. The product is part of the OMNIMATE Power series, providing reliable performance in various electronic applications.
