Weidmuller 7760056344

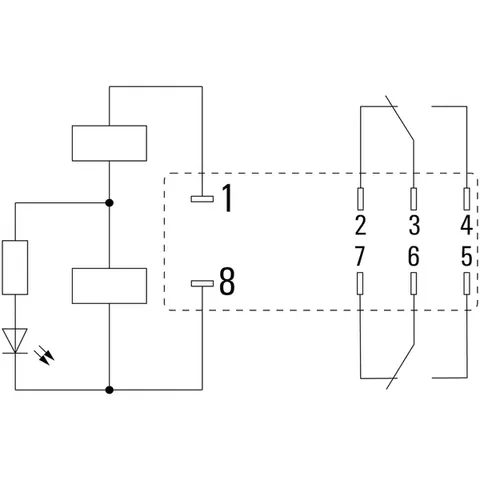

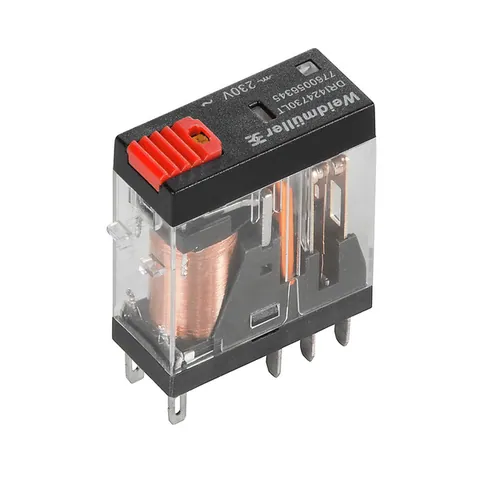

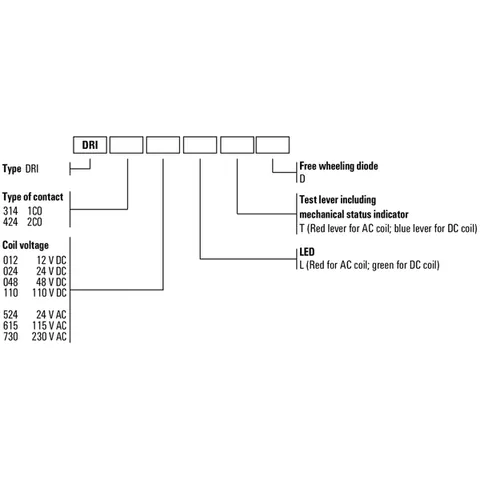

The D-SERIES DRI relay, designated as DRI424615LT, is equipped with 2 CO contacts made of AgNi and includes a lockable test button. It operates at a rated control voltage of 115 V AC and has a continuous current capacity of 5 A. The relay is designed for versatile applications with flat blade connections measuring 2.5 mm x 0.5 mm.

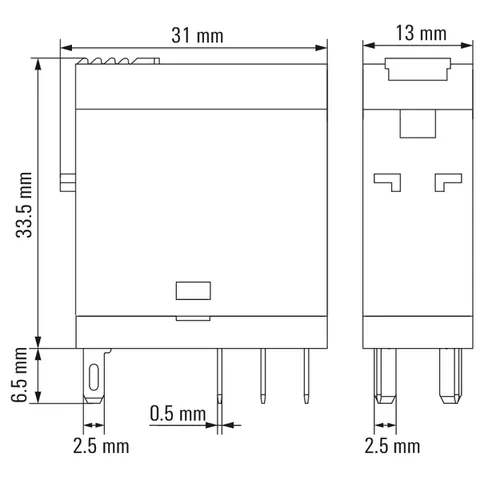

In terms of dimensions, the relay has a width of 13 mm, height of 31 mm, and a depth of 33.5 mm, weighing 19.58 g. The device supports a mechanical service life of up to 10 million switching cycles, making it suitable for repeated use in various environments.

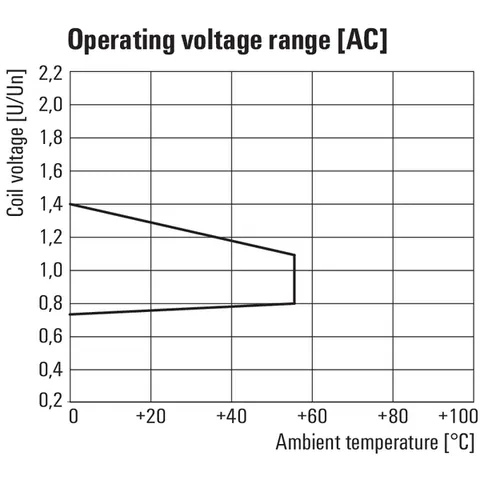

The relay's input specifications include a rated current of 9.3 mA, with a power rating of 1.1 VA and a coil resistance of 6200 Ω ± 10%. Notably, the pull-in and drop-out voltages are typically 92 V and 34.5 V AC, respectively, with a status indicator provided by a red LED.

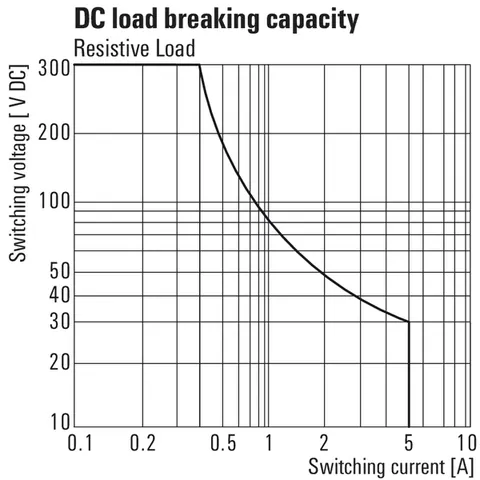

Output capabilities include a rated switching voltage of 250 V AC, with a maximum switching capacity of 1250 VA for AC and 150 W for DC applications at 24 V. The relay also features rapid switch-on and switch-off delays, enhancing its operational responsiveness.

Designed to meet various environmental standards, it operates optimally in temperatures ranging from -40 °C to 55 °C and can be stored between -40 °C and 85 °C. The relay complies with multiple approvals including CE, cURus, and EAC, and adheres to IEC and EN standards, ensuring reliable performance in demanding applications.
