Honeywell

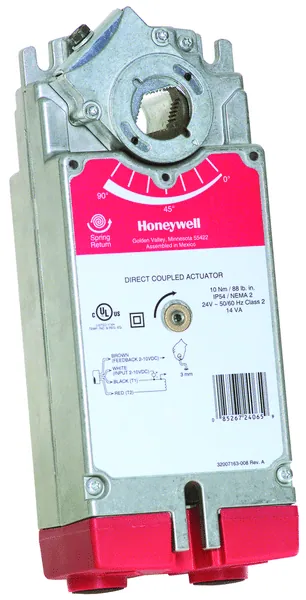

MS4120F1006/U
1 / 2
Opis
Quality and experience are what make Honeywell's actuators and motors the top performers in the HVAC industry. If you need an actuator with lasting value or a motor with reliable performance and trouble-free operation, specify Honeywell. The Honeywell actuator products make precision easy with self-centering shaft adaptors, detachable access covers and universal signal mode adaptors.- Part Number
- MS4120F1006/U
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Specifications
- Valve Compatibility
- With linkage
- Supply Voltage Frequency
- 60 Hz
- Stall Torque
- 425 in·lb
- Spring Return Orientation
- CW or CCW (based on actuator orientation)
- Spring Return
- Yes
- Shaft Mounting
- Universal
- Runtime
- 15 s
- Overall Width
- 3.94 in ; 100 mm
- Overall Height
- 10.67 in ; 271 mm
- Overall Depth
- 2.95 in ; 75 mm
- Operating Current Draw
- 0.35 A
- Number of End Switches
- 0
- NEMA Rating
- NEMA 2
- Minimum Shipping & Storage Temperature
- -40 °F ; -40 °C
- Minimum Shaft Diameter
- 0.5 in
- Minimum Operating Humidity
- 5 % non-condensing
- Minimum Operating Ambient Temperature
- -40 °F ; -40 °C
- Maximum Shipping & Storage Temperature
- 140 °F ; 60 °C
- Maximum Shaft Diameter
- 1.06 in round ; 0.75 in square
- Maximum Return Timing
- 15 s
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Operating Ambient Temperature
- 130 °F ; 55 °C
- Manual Override Included
- Yes, Manual crank
- Lead Length
- 40 in ; 1 m
- IP Rating
- IP54
- Includes
- Self-centering shaft adapter
- Housing Material
- Aluminum
- Holding Power Consumption
- 10 W
- Holding Noise Rating
- 20 (db(A) @ 1m)
- Holding Current Draw
- 0.15 A
- For Use With
- Dampers
- Fire & Smoke Rating
- UL555S up to 350°F
- Feedback Included
- No
- Features
- 3/8 in flexible conduit connections
- Driving Power Consumption
- 35 W
- Driving Noise Rating
- 70 (db(A) @ 1m)
- Damper Compatibility
- Direct Mount
- Connection Type
- Cable
- Compatible with External Auxiliary Switches
- No
- Angle of Rotation
- 95 °
- Torque
- 175 in·lb ; 20 Nm
- Supply Voltage
- 120 V AC
- Power Loss Action
- Spring return
- Mounting Style
- Direct Coupled
- Control Signal
- Two-Position (SPST)
- Application
- Fire and Smoke
