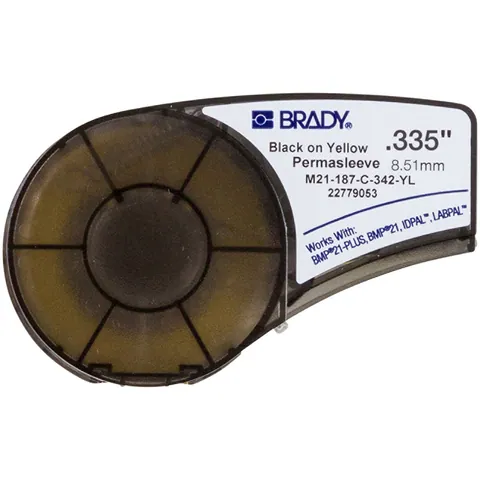

M21-187-C-342-YL

Specifications

Applications

Electrical Labeling; Wire and Cable Labeling

Brand Name

Brady®

Color

Black on Yellow

Diagram

Icon 5 (circle with centre dot)

Enables Industry Compliance

ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized

Finish

Matte

For Use with Printer

BMP®21 LAB Label Printer; BMP®21 Labeler; BMP®21 PLUS Portable Label Printer; IDPAL™ Handheld Label Maker; LABPAL™ Handheld Label Maker

Label/Media Format

Label/Media in Cartridge with Ribbon

Manufacturer Part Number

M21-187-C-342-YL

Primary Noun, Basic Function

Heat Shrink Tubing

Print Technology

Thermal Transfer

Printer and Label Applications

Wire & Cable

Printer Compatibility

BMP21-PLUS; BMP21; IDPAL

Printer Compatibility (Print)

BMP21-PLUS

Quantity per Row

1

Ribbon Color

Black

Ribbon Series

R4300

Shrink Ratio

3:1

Tape Color

Yellow

Total Qty per Pack

1 Cartridge / Box

Trade Name

BMP®21 PermaSleeve®

Adhesive (Y/N)

No

Brady Material Number

B-342

Label Properties

Heat Shrink Sleeves

Material

Heat-shrink Polyolefin

Material Properties

Flame-retardant; Heat-shrinkable

Resistance Properties

Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant

SAP B-Number

B-342

Diameter as Supplied (in/ft/yd)

0.187 in

Diameter as Supplied (mm/cm/m)

4.8 mm

Dimensions

0.335 in H

Dimensions (Metric)

8.50 mm W x 8.5 mm H x 2.10 m L

Dimensions 2

0.335 in H

Height (in/ft/yd)

0.335 in

Height (mm/cm/m)

8.5 mm

Maximum Service Temperature °C

135 °C

Maximum Service Temperature °F

275 °F

Maximum Wire Diameter (in/ft/yd)

0.15 in

Maximum Wire Diameter (mm/cm/m)

3.81 mm

Maximum Wire Gauge

10 AWG

Minimum Service Temperature °C

-55 °C

Minimum Service Temperature °F

-67 °F

Minimum Wire Diameter (in/ft/yd)

0.062 in

Minimum Wire Diameter (mm/cm/m)

1.57 mm

Minimum Wire Gauge

20 AWG

Recovered Diameter (in/ft/yd)

0.187 in

Recovered Diameter (mm/cm/m)

4.75 mm

Roll Length (in/ft/yd)

7 ft

Roll Length (mm/cm/m)

2.13 m

Size - Length (m)

2.10 m

Size - Width (mm)

8.50 mm

Sleeve Size (in/ft/yd)

0.187 in Dia x 7 ft L

Sleeve Size (mm/cm/m)

4.8 mm Dia x 2.13 m L

Web Width (in/ft/yd)

0.813 in

Web Width (mm/cm/m)

8.51 mm

Wire Diameter Range

0.062 in to 0.15 in

Wire Gauge Range

20 AWG to 10 AWG

Regulatory Information

CA Prop 65 Labeled

Yes

CA Prop 65 Label Warning

WARNING: Cancer - www.P65warnings.ca.gov

Contains CA PROP 65 Substance

Yes Contains-Label required

Contains CA PROP 65 Substance

Yes

Contains CA PROP 65 Warning Type

Cancer

Contains CA Prop 65 Cancer Causing Chemical

Antimony Trioxide

Contains Heavy Metal(s)

No - Does not contain

DOT Regulated Product

No = not regulated by DOT

EU RoHS Compliance

Pass 2011/65/EU(Pass 2015/863)

EU RoHS Compliant

Yes

SDS Safety Data Sheet required

No = MSDS/SDS is not required
