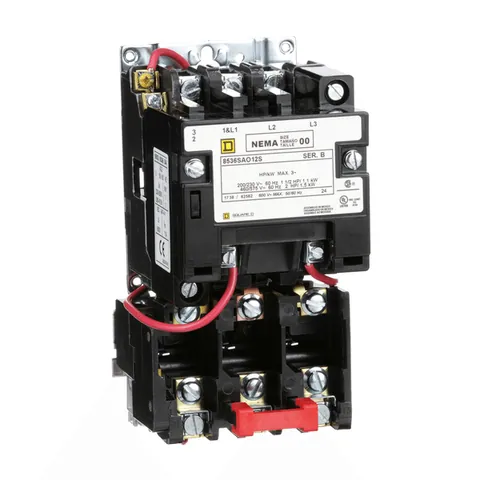

8536SAO12V01S

Additional Information

Part Number

8536SAO12V01S

UPC

785901743477

UNSPSC

39121521

Tariff Code

8536504000

Country of Origin

MX

Environment

Product Certifications

UL Listed || CSA || NEMA

Nema Degree Of Protection

not rated (open device)

Contractual warranty

Warranty

18 months

Offer Sustainability

Pvc Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Eu Rohs Directive

Not compliant

Complementary

Thermal Overload Type

melting alloy 3

Height

172 mm

Auxiliary Contact Composition

without

Nema Size

00

[Uc] Control Circuit Voltage

24 V AC 60 Hz

Rated Power In Hp

1.5 HP 200 V AC || 1.5 HP 230 V AC || 2 HP 460 V AC || 2 HP 575 V AC

Control Type

no control units

Phase

3 phase

Local Signalling

without pilot light

Poles Description

3P

Electrical Connection

screw clamp terminals

Line Rated Current

9 A

Control Circuit

separate control circuit

Width

89 mm

Depth

107 mm

[Ue] Rated Operational Voltage

600 V AC

Specifications

Range Of Product

S

Product Or Component Type

motor starter

Motor Starter Type

non reversing
