Schneider Electric
9999SX12
1 / 6
Descrizione
Attivo maturo

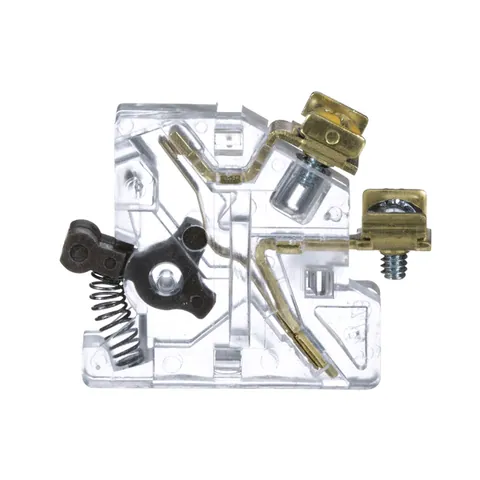

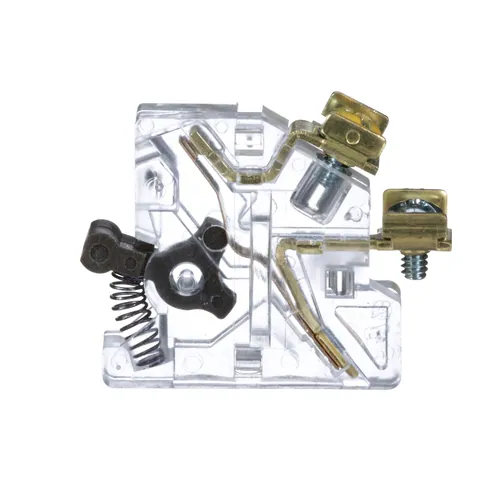

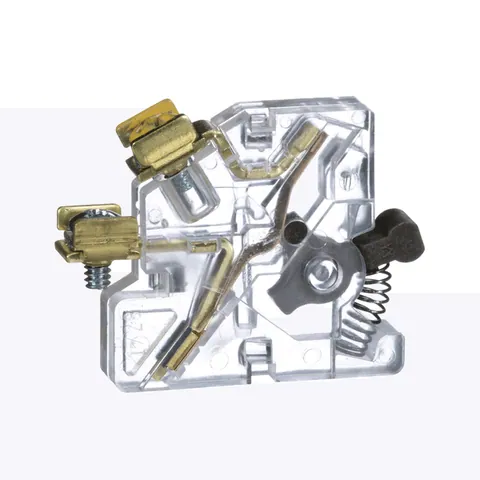

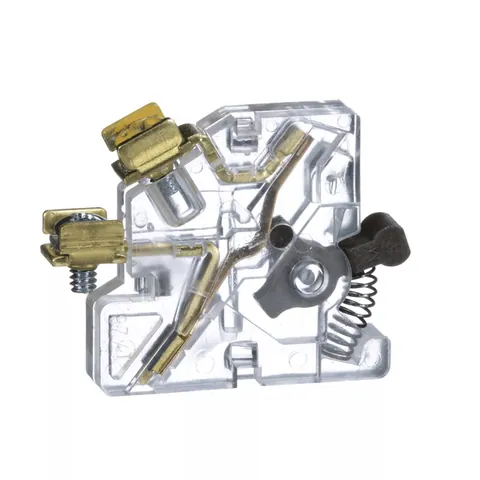

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This internal nonconvertible contact is often used as part of the electrical interlock on reversing contactors and starters. This auxiliary contact has one normally closed contact. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 3.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.- Country of Origin
- MX
- Part Number
- 9999SX12
- Tariff Code
- 8536509065
- EAN
- 39121529
- UPC
- 785901879732
- UNSPSC
- 39121529
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Environment
- Product Certifications
- CSA || UL Recognized || UL Listed
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- [Ue] Rated Operational Voltage
- <= 600 V AC 50/60 Hz
- Auxiliary Contact Composition
- 1 NC
- Nema Size
- 1 || 0 || 00 || 2
- Rated Breaking Capacity
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 0.75 A 480 V AC inductive control circuit UL 508 || 0.6 A 600 V AC inductive control circuit UL 508 || 5 A <= 600 V AC resistive control circuit UL 508
Specifications
- Range Of Product
- type S
- Product Or Component Type
- Auxiliary Contact Module
- Product Destination
- contactor || starter
