Schneider Electric 8736SCO8V02S

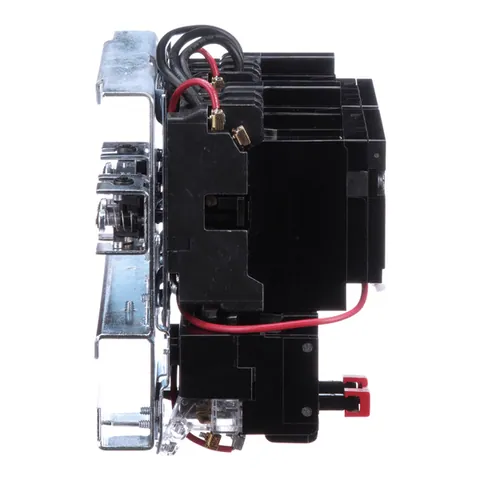

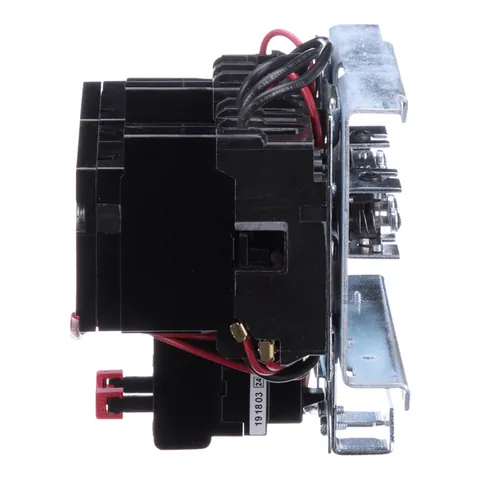

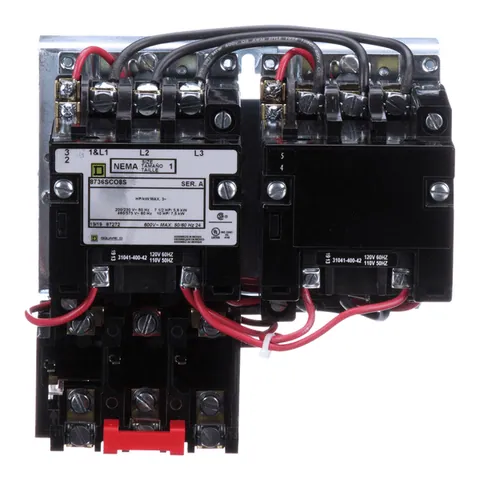

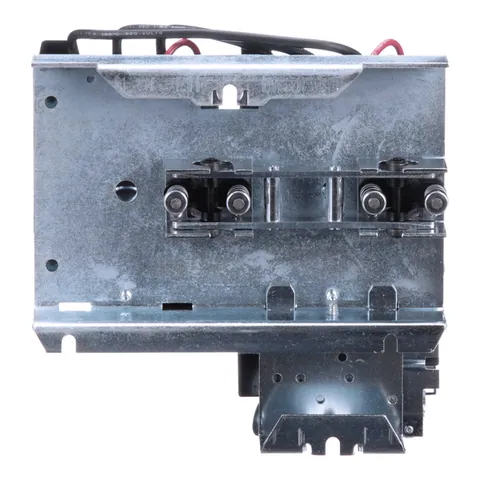

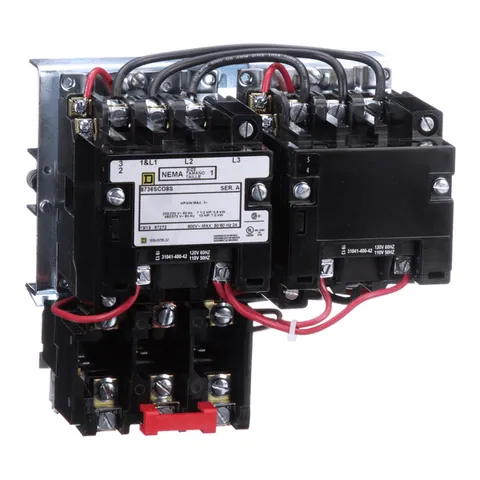

The NEMA Type S reversing starter is designed for the full voltage operation of AC squirrel cage motors, facilitating starting, stopping, and reversing functions. This specific model, designated as NEMA 8736, is constructed with two interlocked 8502S contactors and an overload relay, ensuring safe operation. It is rated for 27 amps and features a melting alloy type overload relay that utilizes Type B thermal units to detect overcurrent situations.

Configured horizontally, the starter supports ratings of 7.5 HP at both 200 and 230 VAC, along with 10 HP at 460 and 575 VAC. The unit operates on a 120VAC coil voltage and has a maximum SCCR of 5 kA as per UL508A, contingent upon appropriate circuit protection. The enclosure is made of painted sheet steel, compliant with NEMA 1 standards, although it is classified as an open device.

With dimensions of 6.91 inches in height, 7.64 inches in width, and 5.31 inches in depth, this starter can be integrated into various applications where space is a consideration. It is UL listed and CSA certified, ensuring compliance with relevant safety standards. Additionally, Type S starters offer a variety of replaceable coil options for flexibility in application.
