Schneider Electric
8736SBO4V02H30S

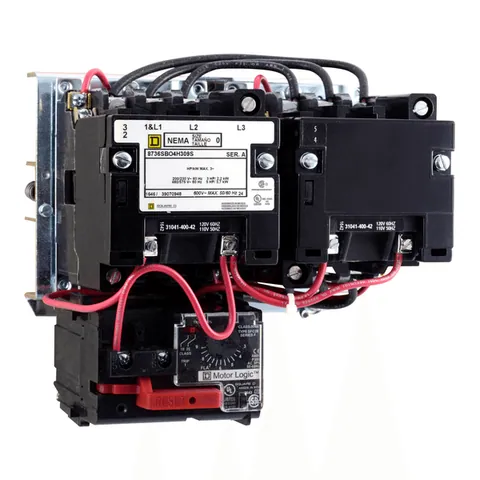

NEMA Starter, Type S, reversing, horizontal, Size 0, 18A, 5 HP at 575 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic SSOLR, 120 VAC coil, open
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Additional Information
- Part Number
- 8736SBO4V02H30S
- UPC
- 785901703167
- UNSPSC
- 39121521
- Tariff Code
- 8536504000
- Country of Origin
- MX
Environment
- Product Certifications
- UL Listed || CSA
- Nema Degree Of Protection
- not rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
Complementary
- Thermal Overload Type
- solid state Motor Logic class 10/20
- Height
- 175.51 mm
- Nema Size
- 0
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Rated Power In Hp
- 3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC
- Control Units
- no control units
- Phase
- 3 phase
- Local Signalling
- without pilot light
- Installation Direction
- horizontal
- Auxiliary Contact Composition
- without
- Poles Description
- 3P
- Electrical Connection
- screw clamp terminals
- Line Rated Current
- 18 A
- Control Circuit
- separate control circuit
- Width
- 181.10 mm
- Depth
- 134.87 mm
- Wiring Mode
- 3 wires
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Range Of Product
- S
- Product Or Component Type
- starter
- Motor Starter Type
- reversing
