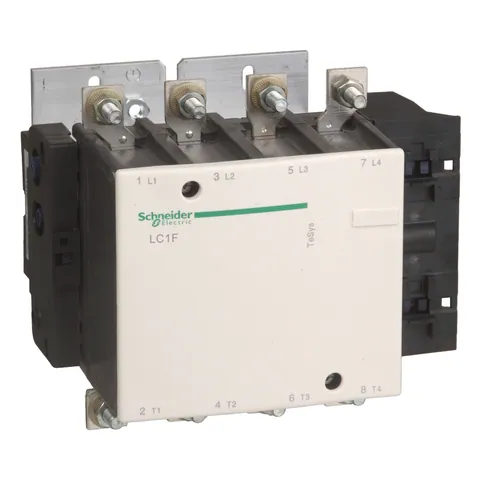

LC1F2654M7

Specifications

[Uc] Control Circuit Voltage

220 V AC 40...400 Hz

Range Of Product

TeSys F

[Ue] Rated Operational Voltage

<= 1000 V AC-1 || <= 690 V AC-3 || <= 690 V AC-4 || <= 460 V DC

Contactor Application

resistive load

Product Or Component Type

contactor

Range

TeSys

Utilisation Category

AC-1

[Ie] Rated Operational Current

350 A 40 °C) <= 440 V AC AC-1

Poles Description

4P

Device Short Name

LC1F

Contractual warranty

Warranty

18 months

Complementary

Product Certifications

LROS (Lloyds register of shipping) || CB || RINA || ABS || BV || DNV || RMRoS || UL || CCC || UKCA

Power Dissipation Per Pole

37 W AC-1

Average Impedance

0.3 mOhm - Ith 350 A 50 Hz

[Ith] Conventional Free Air Thermal Current

350 A 40 °C

Control Circuit Voltage Limits

operational 0.85...1.1 Uc 40...400 Hz 55 °C) || drop-out 0.15...0.2 Uc 40...400 Hz 55 °C)

Standards

JIS C8201-4-1 || IEC 60947-1 || EN 60947-4-1 || IEC 60947-4-1 || EN 60947-1

Mounting Support

plate

Control Circuit Type

AC 40...400 Hz

Rated Breaking Capacity

2120 A IEC 60947-4-1

Associated Fuse Rating

315 A aM <= 440 V || 400 A gG <= 440 V

[Uimp] Rated Impulse Withstand Voltage

8 kV

Inrush Power In Va

650-650 VA, 40...400 Hz 0.9 20 °C)

Connections - Terminals

control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid without cable end || control circuit screw clamp terminals 2 1-4 mm²solid without cable end || power circuit bar 2 32 x 4 mm || power circuit lugs-ring terminals 1 240-240 mm² || power circuit connector 1 240-240 mm² || power circuit bolted connection

Pole Contact Composition

4 NO

Operating Time

40...65 ms closing || 100...170 ms opening

Maximum Operating Rate

2400 cyc/h 55 °C

Mechanical Durability

10 Mcycles

Tightening Torque

control circuit 1.2 N.m || power circuit 35 N.m

Compatibility Code

LC1F

Hold-In Power Consumption In Va

10-10 VA, 40...400 Hz 0.9 20 °C)

Overvoltage Category

III

[Ui] Rated Insulation Voltage

1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C

[Icw] Rated Short-Time Withstand Current

2200 A 40 °C - 10 s || 1230 A 40 °C - 30 s || 950 A 40 °C - 1 min || 620 A 40 °C - 3 min || 480 A 40 °C - 10 min

Heat Dissipation

8-8 W

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP080208EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI100418

Eu Rohs Directive

Compliant

Environment

Ambient Air Temperature For Operation

-5-55 °C

Height

203 mm

Net Weight

8.54 kg

Ambient Air Temperature For Storage

-60-80 °C

Protective Treatment

TH

Ip Degree Of Protection

IP20 front face with shrouds IEC 60529 || IP20 front face with shrouds VDE 0106

Operating Altitude

9842.52 ft (3000 m) without derating

Width

244.5 mm

Depth

213 mm

Permissible Ambient Air Temperature Around The Device

-40-70 °C
