Schneider Electric
LVCT00050S

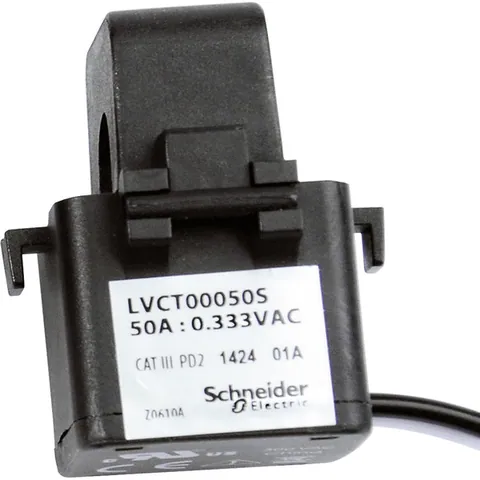

LVCT 50 A - 0.333 V output - split core CT - Ø=10 mm x H=11 mm
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€35.26
Additional Information
- Part Number
- LVCT00050S
- UNSPSC
- 39121106
- Tariff Code
- 8504314035
- Country of Origin
- US
Environment
- Ambient Air Temperature For Operation
- 0-70 °C
- Depth
- 26 mm
- Ambient Air Temperature For Storage
- -40-105 °C
- Relative Humidity
- 95-95 %
- Width
- internal 10 mm || external 23 mm
- Height
- internal 11 mm || external 40 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
Specifications
- Network Frequency
- 50/60 Hz
- Product Destination
- BCPM || BCPMSC || Enercept || iEM3000 || EM3500 || EM4200 || EM4900
- Electrical Connection
- cable 1.8 m AWG 22) 600 V
- Accessory / Separate Part Category
- measurement accessory
- Product Or Component Type
- current transformer
- Range
- PowerLogic
- Output Voltage
- 0.333 V
- Line Rated Current
- 50 A
- Current Transformer Type
- split core balance
- Device Short Name
- LVCT
Complementary
- Range Compatibility
- PowerLogic PowerLogic BCPM BCPMA multi-circuit energy meter || PowerLogic PowerLogic BCPM BCPMB multi-circuit energy meter || PowerLogic PowerLogic BCPM BCPME multi-circuit energy meter || PowerLogic PowerLogic BCPMSC BCPMSCA multi-circuit energy meter || PowerLogic PowerLogic BCPMSC BCPMSCB multi-circuit energy meter || PowerLogic PowerLogic BCPMSC BCPMSCE multi-circuit energy meter || PowerLogic PowerLogic EM3500 EM3502 energy meter || PowerLogic PowerLogic EM3500 EM3550 energy meter || PowerLogic PowerLogic EM3500 EM3555 energy meter || PowerLogic PowerLogic EM3500 EM3560 energy meter || PowerLogic PowerLogic EM3500 EM3561 energy meter || PowerLogic PowerLogic EM4200 EM4235 energy meter || PowerLogic PowerLogic EM4200 EM4236 energy meter || PowerLogic PowerLogic EM4900 EM4904 multi-circuit energy meter || PowerLogic PowerLogic EM4900 EM4908 multi-circuit energy meter || PowerLogic PowerLogic EM4900 EM4914 multi-circuit energy meter || PowerLogic PowerLogic EM4900 EM4928 multi-circuit energy meter || Acti 9 Acti9 iEM3000 iEM3455 energy meter || Acti 9 Acti9 iEM3000 iEM3465 energy meter
- Measurement Accuracy
- 1 % 10...100 %
Documenti
Data Sheet
