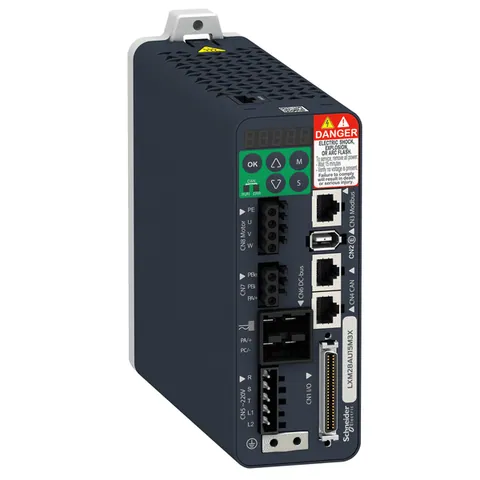

Schneider Electric LXM28AU10M3X
motion servo drive, Lexium 28, single and three phase, 200 to 240V, 1kW
1 / 1
Immagine di catalogo del produttore
Descrizione del prodotto
Ciclo di vita:
The Schneider Electric Lexium 28 Motion Servo Drive is part of the Lexium 28 series, providing servo drives from 0.05kW to 4.5kW.
This product features an EMC filter, integrated CANopen, and a 7-segment display with 5 buttons for user interaction. It operates at a rated supply voltage of 220V (single and three phase) with an output current of 7A and a nominal power of 1kW.
The drive is equipped with spring terminals for electrical connection and RJ45 connectors (CN4) for CANopen/CAN motion. It offers electrical isolation between power and control, as well as CANopen and CAN motion communication interfaces and an RS485 physical interface for Modbus Serial line slave.
The Lexium 28 servo drive is IP20 rated and has dimensions of 55mm (width) x 170mm (depth) x 150mm (height), weighing 1.2kg. It is suitable for machine control solutions and is certified by CE, CSA, and CULus.
This product meets EN/IEC 61800-5-1 standards and is compatible with servo motors BCH2 (130mm, 1 motor stack) at 1000W and servo motors BCH2 (100mm, 1 motor stack) at 1000W. The Lexium 28 range offers predetermined combinations to suit the requirements of motion control applications and optimize installation performance.
The Schneider Electric Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Invia la richiesta
Metodi di pagamento:
Dettagli dell'offerta
- Migliore offerta da:
Fornitore di fiducia — Romania, membro dal 2023, 1–4 dipendenti- Disponibilità:
- 1 pz.Su richiestaAggiornato il: 22-08-2026
- Condizione:
- Nuove eccedenze
Nuove eccedenze - Un articolo nuovo, inutilizzato e non danneggiato senza garanzia del produttore. L'articolo può arrivare senza confezione originale o in una confezione sostitutiva. Se fornita, la scatola potrebbe essere stata aperta.
Il venditore è responsabile della spedizione del prodotto e della fatturazione
Specifiche tecniche
- Marchio
- Schneider Electric
- [Us] Rated Supply Voltage
- 200...240 V - 10...15 %)three phase || 200...240 V - 20...15 %)single phase
- Network Frequency
- 47.5...63 Hz
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Absolute Accuracy Error
- 0.1 %
- Discrete Input Logic
- positive or negative CN1)
- Output Current 3S Peak
- 21 A 220 V
