6GK7142-7BX00-0AX0

1 / 1

Descrizione

Attivo maturoConforme a RoHS

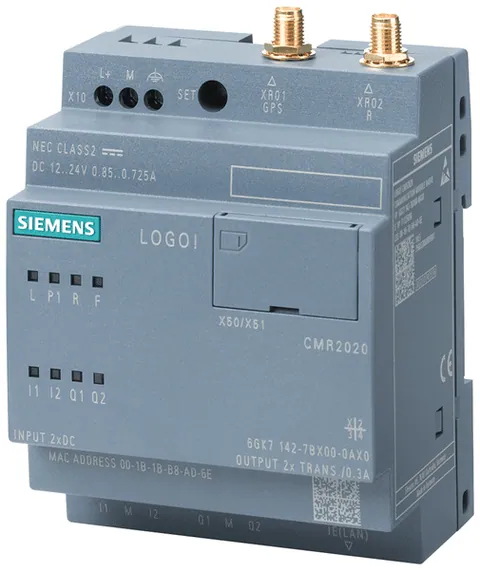

LOGO! CMR2020 COMMUNICATION MODULE FOR CONNECT. LOGO! 0BA8 TO GSM/GPRS NET; 1 RJ45 PORT FOR IND. ETHERNET-CONECTION TO LOGO! 0BA8; 2XDI;2XDO; READ/WRITE-ACCESS TO LOGO!-VARIABLES; SMS SEND/RECEIVE; POSITION RECOGN. GPS; TIME SYN./FORWAR- DING WITH REAL TIME CLOCK; CONFIG./DIAG.PER WEB-INTERFACE; NOTE NATIONAL APPROVALS! MANUAL AVAILABLE AS DOWNLOAD.

Country of Origin: DE
Part Number: 6GK7142-7BX00-0AX0
Tariff Code: 85176200
EAN: 4047622188712
UPC: 804766000133

ETIM

Group Code : EG000024

Group Description : PLC's

Class Description : PLC communication module

Class Code : EC001423

Version : 7

€593.05

net

1

Metodi di pagamento:

Migliore offerta da:: Fornitore Automa.Net di fiducia
Disponibilità:: 1 pz.
Disponibile
Aggiornato il: 12-11-2024
Consegna stimata:: Su richiesta
Condizione:: Nuovo sigillato in fabbrica

Nuovo sigillato in fabbrica - Un articolo nuovo di zecca, inutilizzato, non aperto, non danneggiato, nella sua confezione originale sigillata dal produttore.

Un totale di 6 Parts In-Stock da 3 Distributors

Processo di Pagamento Sicuro

Politiche di Reso e Rimborso

Politiche di Spedizione

Politiche di Garanzia

Offerte Disponibili (2)

Offerte in magazzino

6GK7142-7BX00-0AX0 product image

Siemens

6GK7142-7BX00-0AX0

Condizione:: Nuovo sigillato in fabbrica
Disponibile:: 4 pz.
Disponibile
Aggiornato il: 21-11-2024

Offerta da:: Fornitore Automa.Net di fiducia
Consegna stimata:: Su richiesta
Garanzia:: 12 mesi

1

6GK7142-7BX00-0AX0 product image

Siemens

6GK7142-7BX00-0AX0

Condizione:: Nuovo sigillato in fabbrica
Disponibile:: 1 pz.
Disponibile
Aggiornato il: 21-11-2024

Offerta da:: Fornitore Automa.Net di fiducia
Consegna stimata:: Su richiesta
Garanzia:: 12 mesi

1

Specifications

Height: 90 mm
Depth: 58.2 mm
Width: 71.5 mm
Radio standard GSM: true
Radio standard GPRS: true
Country of Origin: DE
Number of HW-interfaces USB: 0
Number of HW-interfaces other: 0
Number of interfaces PROFINET: 0
SIL according to IEC 61508: None
Type of data transmission: Other
Number of HW-interfaces RS-232: 0
Number of HW-interfaces RS-422: 0
Number of HW-interfaces RS-485: 0
Transmission rate: 100000000 kBit/s
Number of HW-interfaces Wireless: 2
Number of HW-interfaces parallel: 0
Number of HW-interfaces serial TTY: 0
Explosion safety category for gas: None
Explosion safety category for dust: None
Performance level acc. EN ISO 13849-1: None
Number of HW-interfaces industrial Ethernet: 1
Supporting protocol for other bus systems: true
