Weidmuller 1096020000

The 7.62mm PCB plug-in connector features a male header design with a total of 12 poles, configured at a 90° angle. The solder pin length is 3.2 mm, facilitating a secure connection through THT soldering. Constructed from PBT, this connector is rated for various voltage levels, including 300 V for use groups B and C, and 600 V for use group D according to UL 1059 standards.

It has a minimum clearance distance of 6.5 mm and a creepage distance of 11.2 mm, ensuring safety and compliance with IEC standards. The connector is suitable for operating temperatures ranging from -50 °C to 100 °C and is designed to withstand a short-time withstand current of 180 A for 3 seconds. Insulation strength exceeds 108 Ω, and the product meets multiple approval standards including cURus and EAC.

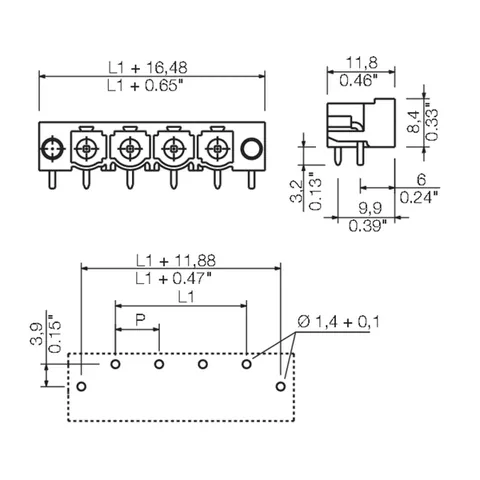

With a compact height of 11.6 mm and a depth of 11.8 mm, this connector ensures efficient space utilization on PCBs. The black color aligns with RAL 9011 standards, while the contact surfaces are tinned copper alloy, enhancing durability. The product is packaged in a box, with dimensions of 40 mm length, 110 mm width, and 225 mm height, making it suitable for industrial applications requiring reliable electrical connections.
