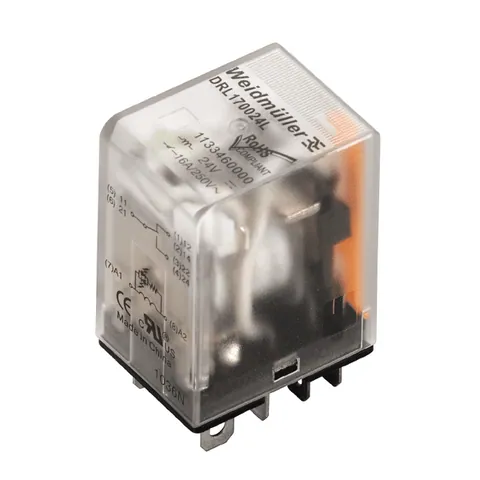

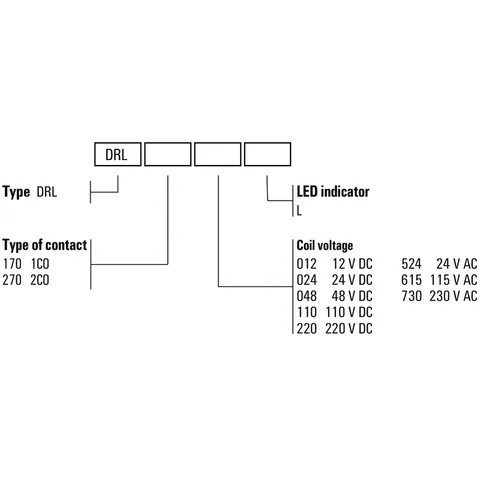

Weidmuller 1133520000

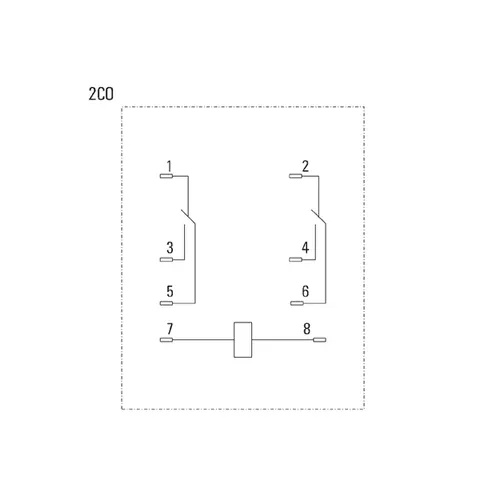

The D-SERIES DRL relay is equipped with two CO contacts made of AgCdO, suitable for controlling circuits with a rated voltage of 24 V DC. This relay supports a continuous current of 10 A and utilizes flat blade connections measuring 4.8 mm x 0.5 mm.

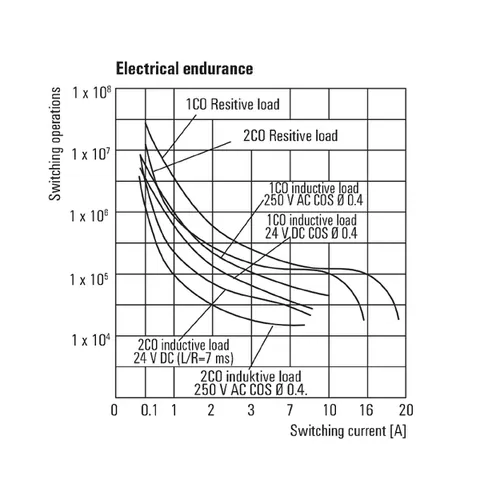

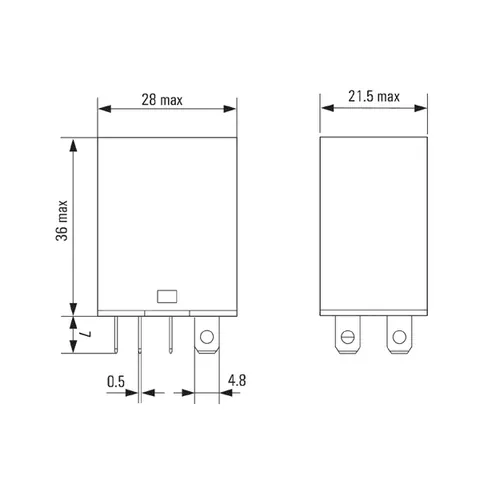

With a compact design, the relay's dimensions are 21.5 mm in width, 28 mm in height, and 36 mm in depth, amounting to a net weight of 35 g. Its operational reliability is enhanced by a mechanical service life of up to 10 million switching cycles and a contact resistance of ≤ 50 mΩ.

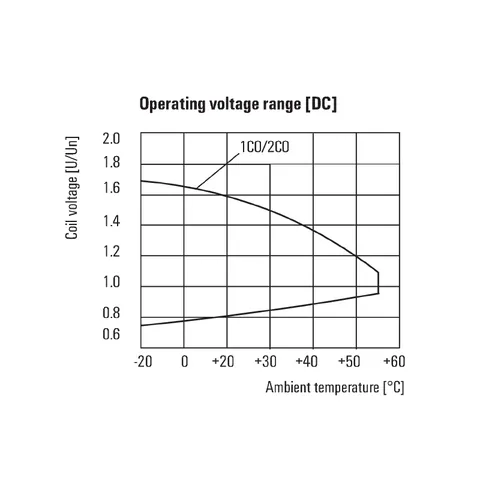

For environmental compliance, it adheres to standards such as CE, cURus, and EAC, and is compliant with ROHS regulations. The relay exhibits a UL 94 flammability rating of V-2 and is designed to operate efficiently within a temperature range of -25 °C to 55 °C, with a relative humidity tolerance of 35% to 85%.

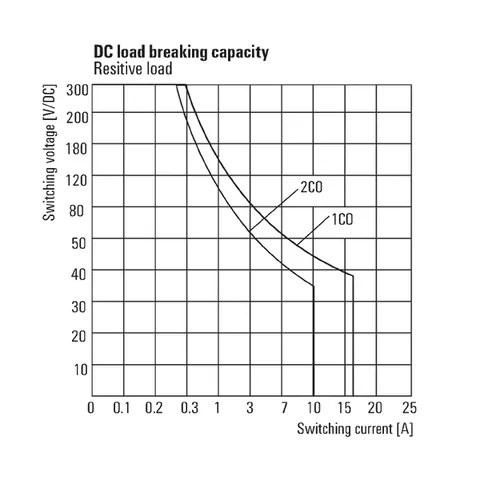

Electrical characteristics include a rated switching voltage of 250 V AC, with a maximum AC switching voltage also at 250 V, and an inrush current capacity of 50 A for 50 ms. The relay's switching capacity reaches 2500 VA for AC and 240 W at 24 V for DC applications. The pull-in and drop-out voltages are specified at 18 V and 2.4 V DC, respectively, ensuring effective operation across varying conditions.

Insulation coordination is robust, featuring a rated voltage of 250 V and a surge voltage category of III, with IP20 protection. The dielectric strength between input and output is rated at 2 kVeff for one minute, ensuring reliable performance in...
