Weidmuller 1155100000

The PCB plug-in connector is constructed with a male header configuration, featuring a pitch of 5.08 mm and a total of 9 poles. The component is designed for THT solder connections at a 90° angle, ensuring a space-efficient layout. The solder pin length measures 3.2 mm and is tinned for enhanced connectivity.

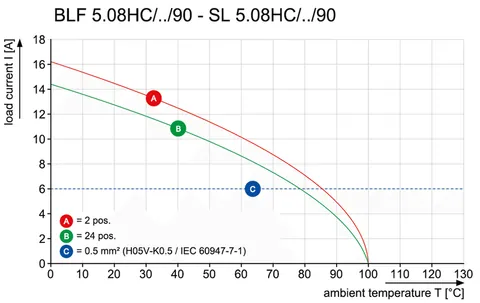

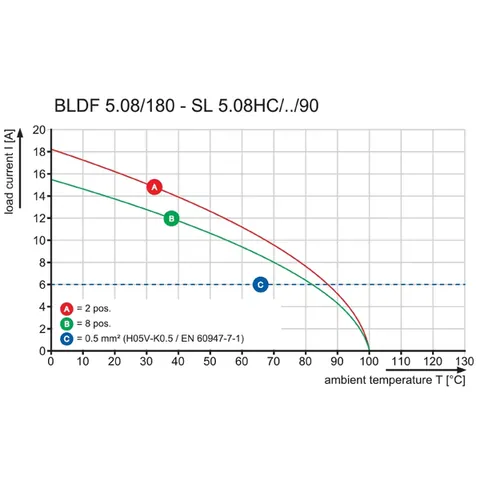

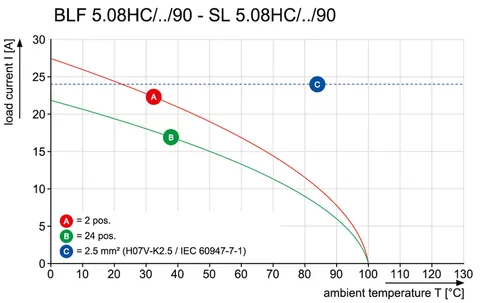

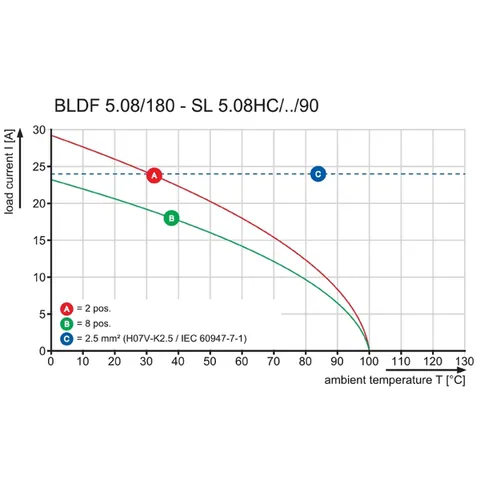

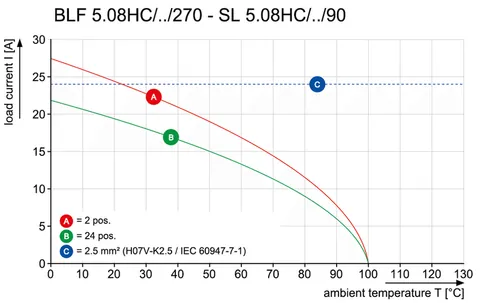

This connector complies with various standards including IEC 60664-1 and IEC 61984, and is rated for a maximum voltage of 300 V and a rated current of up to 18.5 A under specific conditions. The device has been approved by cURus, EAC, and KEMAKEUR, signifying adherence to international safety and performance standards.

With dimensions of 45.72 mm width, 11.7 mm height, and 12 mm depth, this connector is compact and lightweight, weighing 3.274 g. The insulating material used is PA GF with a comparative tracking index (CTI) of ≥ 550, and it possesses a UL 94 flammability rating of V-0, ensuring safe operation across a temperature range from -50 °C to 100 °C.

Furthermore, this connector is part of the OMNIMATE Signal - series BL/SL 5.08, making it versatile for various applications. It can withstand up to 25 plugging cycles and is designed to facilitate a maximum plugging force of 10 N per pole.
