Weidmuller 2492010000

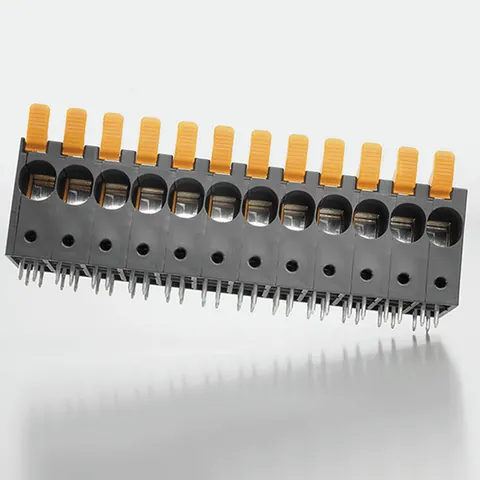

The terminal block is designed for printed circuit board applications with a 15.00 mm pitch and a 90° conductor outlet. It supports a maximum clamping range of 16 mm² and features a solder pin length of 5 mm. The device is suitable for wire connections using the PUSH IN method with an actuator.

Constructed from high-quality materials, the insulating material is Wemid (PA) and has a black finish, while operational elements are made from PA4T GF in orange. It operates effectively within a temperature range of -40°C to 120°C and maintains insulation strength of at least 108 Ω. The terminal block is compliant with various standards, including cURus and ROHS, ensuring reliability in various applications.

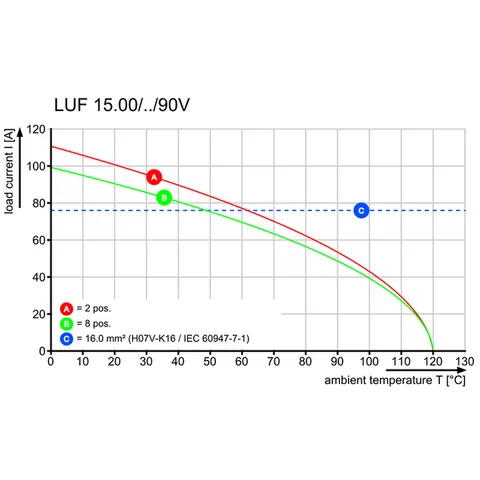

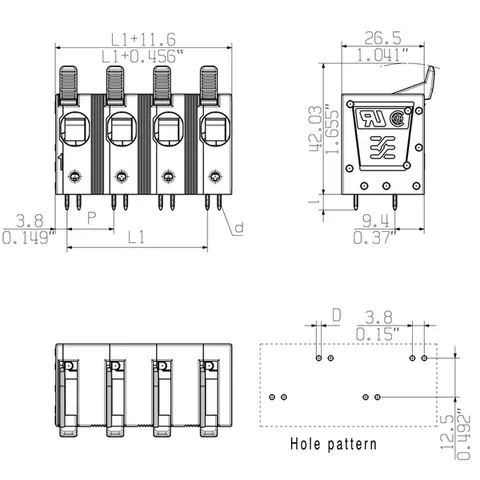

With a rated voltage of up to 1,000 V and a rated current capacity of 68 A at 20°C, this terminal block is engineered for robust performance. Its dimensions are 41.58 mm in width, 47.03 mm in height, and 26.45 mm in depth, with a net weight of 36.28 g. The product is also touch-safe according to DIN VDE standards.

For further specifications and application details, refer to the product's approval certificates and technical documentation, including the Designation Code.
