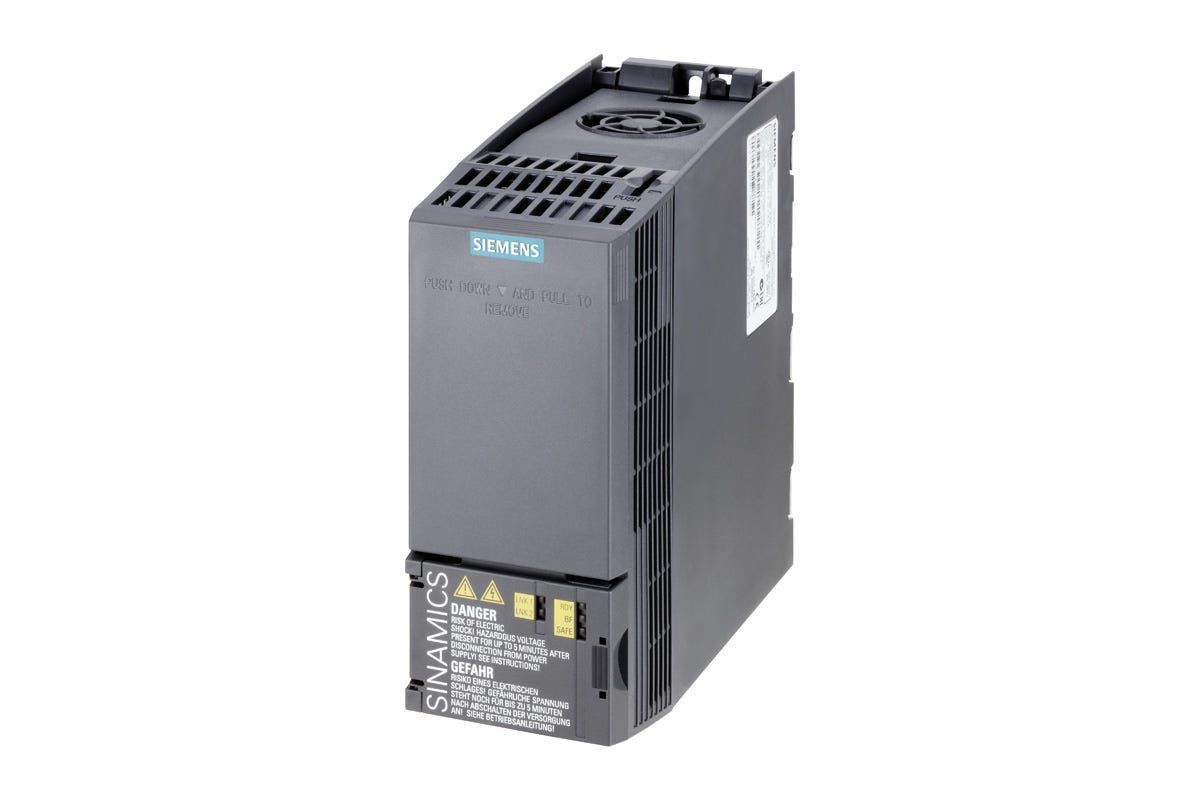

Siemens
6SL3210-1KE14-3AB2
SINAMICS G120C USS/MB 1, 5KW FILA
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
$443.80
1
Payment methods:
A total of 81 Parts In-Stock from 35 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€289.19
Description
ActiveRoHS Compliant
SINAMICS g120c rated power 1,5KW with 150% overload for 3 sec 3AC380-480v +10/-20% 47-63HZ integrated filter class a i/o-interface 6di, 2do,1ai,1ao safe torque off integrated fieldbus uss/ modbus rtu protection IP20/ ul open type size fsaa 173x73x155(hxwxd) external 24vAdditional Information
- Part Number
- 6SL3210-1KE14-3AB2
- UPC
- 804766249600
- Tariff Code
- 8504409540
- Country of Origin
- GB
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
Specifications
- Country of Origin
- GB
- Width
- 73 mm
- Depth
- 155 mm
- Height
- 173 mm
- Mains voltage
- 380 V
- With PC connection
- true
- Max. output voltage
- 480 V
- Number of phases input
- 3
- Number of phases output
- 3
- Number of digital inputs
- 6
- Max. output frequency
- 550 Hz
- Number of analogue inputs
- 1
- Number of digital outputs
- 2
- Number of analogue outputs
- 1
- Number of HW-interfaces USB
- 1
- Type of converter
- U converter
- Degree of protection (IP)
- IP20
- Nominal output current I2N
- 4.3 A
- Number of HW-interfaces other
- 6
- Number of interfaces PROFINET
- 0
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces parallel
- 0
- Integrated breaking resistance
- true
- Supporting protocol for MODBUS
- true
- Number of HW-interfaces serial TTY
- 1
- Relative symmetric net voltage tolerance
- 10 %
- Application in industrial area permitted
- true
- Number of HW-interfaces industrial Ethernet
- 0
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for other bus systems
- true
- Max. output at linear load at rated output voltage
- 1.1 kW
- Max. output at quadratic load at rated output voltage
- 1.5 kW
