6SL3210-1PE28-8UL0

1 / 2

Description

ActiveRoHS Compliant

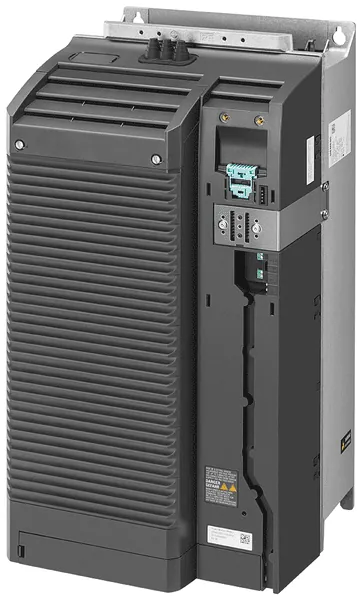

SINAMICS g120 power module pm240-2 without filter with built in braking chopper 3AC380-480v +10/-20% 47-63HZ output high overload 37KW for 200% 3s,150% 57s,100% 240s ambient temp -20 to +50 deg c (ho) output low overload 45KW for 150% 3s,110% 57s,100% 240s ambient temp -20 to +40 deg c (lo) 551 x 275 x 237 (hxwxd), fse protection IP20 without control unit and panel approved for cu firmware- version v4.7 hf8

Country of Origin: DE
Part Number: 6SL3210-1PE28-8UL0
Tariff Code: 85044086
EAN: 4042948668108
UPC: 804766090899

ETIM

Group Code : EG000017

Group Description : Low-voltage Industrial Components

Class Description : Frequency converter =< 1 kV

Class Code : EC001857

Version : 7

€3,264.38

net

€3,627.09

Free Shipping!

1

Payment methods:

Best offer from:: Trusted Automa.Net Supplier
Availability:: 1 pc.
In-Stock
Updated at: 01-11-2024
Warranty:: 24 months
Estimated Delivery:: 04-05 November to United Kingdom
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

A total of 2 Parts In-Stock from 2 Distributors

Delivery from:: CZ
NL

Shipping Information

Secure Payment Process

Return & Refund Policies

Shipping Policies

Warranty Policies

Available Offers (1)

In-Stock offers

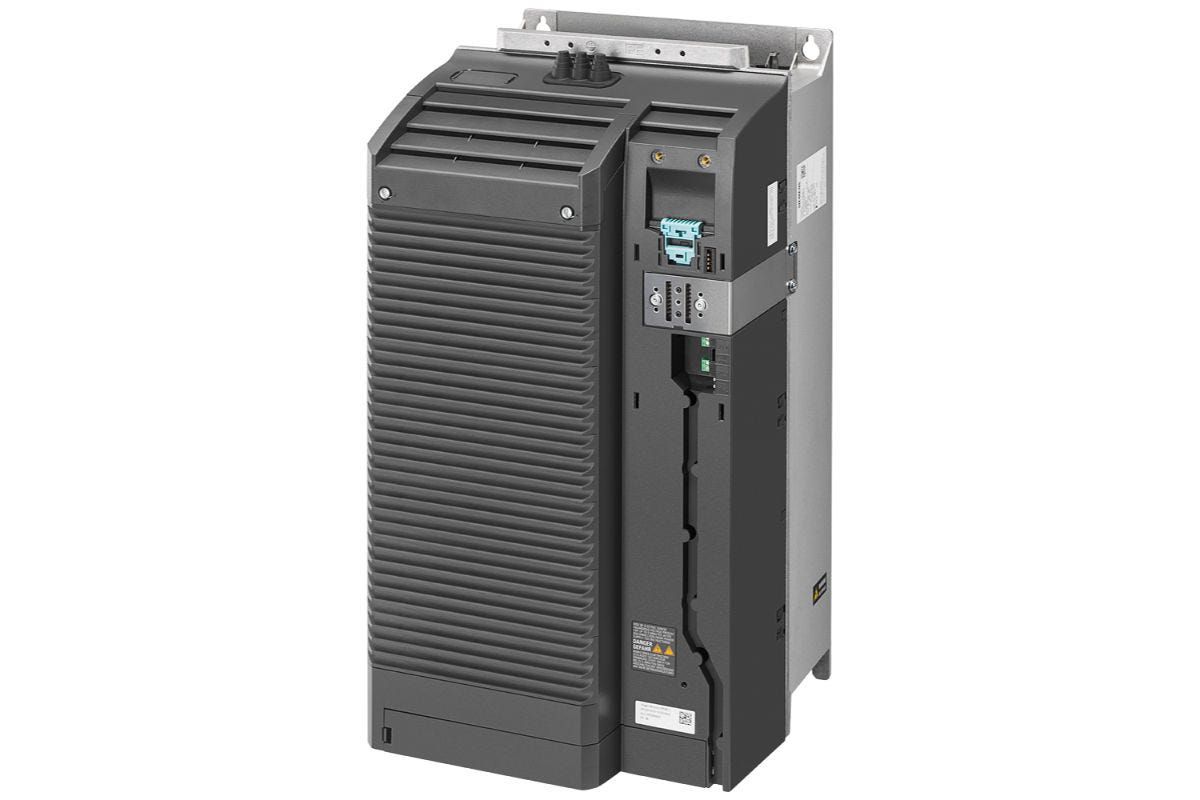

6SL3210-1PE28-8UL0 product image

Siemens

6SL3210-1PE28-8UL0

Condition:: New Factory Sealed
Available:: 1 pc.
In-Stock
Updated at: 03-11-2024

Offer from:: Trusted Automa.Net Supplier
Estimated Delivery:: 04 November to United Kingdom
Warranty:: 24 months

1

€3,798.00

€3,342.24

net

Free Shipping!

Specifications

Brand: SINAMICS
Depth: 237 millimetre
Width: 275 millimetre
Height: 551 millimetre
Input phase number: 3
Net weight: 26 kilogram
Protection type IP: IP20
Output phases, number of: 3
Max. mains voltage: 480 volt
Min. network voltage: 380 volt
Rated output voltage: 400 volt
Brake chopper integrated: true
Rated output current: 90 ampere
Max. output frequency: 550 hertz
Description of product type: PM240-2
Design of frequency changer: U converter
Power loss, static, current-independent [Pls]: 32 watt
Relative symmetric mains voltage tolerance: 10 percent
Relative symmetric mains frequency tolerance: 5 percent
Max. output power with square load at rated output voltage: 45 kilowatt
Max. output power with linear load and rated output voltage: 37 kilowatt
Country of Origin: DE
