ABB 1SDA071243R1

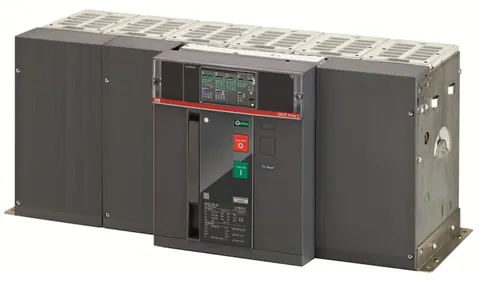

The E6.2V 4000 Ekip Dip LSIG is a fixed three-pole air circuit breaker suitable for AC applications, equipped with a solid-state release mechanism. This model is designed to handle a rated current of 4000 A and a rated operational voltage of 690 V AC. With a power loss of 309 W, it efficiently manages electrical durability, rated for 4000 cycles at voltages up to 440 V and 500 to 690 V.

Mechanical durability is rated at 12,000 cycles, allowing for robust performance under continuous operation. The circuit breaker incorporates four auxiliary contacts and operates with a terminal connection type that is rear flat horizontal, with a bolt terminal type and a tightening torque of 70 N·m. It complies with IEC standards, ensuring reliable operation in various industrial environments.

Notably, this circuit breaker has a rated short-circuit breaking capacity of up to 150 kA for several voltages, demonstrating its capability to protect installations efficiently. The device's short-circuit performance level is classified as V, ensuring it meets rigorous industry standards. Furthermore, the E6.2V 4000 is designed with a recyclability rate of 76.7% according to EN45555, supporting sustainability initiatives.
