ABB 1SDA072025R1

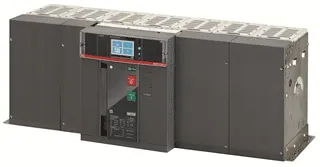

The E6.2V/f 6300 Ekip Touch LSI is a fixed four-pole air circuit breaker featuring a full-size neutral and rear horizontal terminal connections. This device operates with a rated current of 6300 A and is designed for AC applications, ensuring reliable circuit protection.

This circuit breaker is equipped with solid-state release technology, specifically the Ekip Touch LSI, and includes four auxiliary contacts. It exhibits an electrical durability rated up to 2000 cycles at voltages up to 690 V, and its mechanical durability is rated for 12000 cycles.

The E6.2V/f 6300 has a rated short-circuit breaking capacity of 150 kA at various operational voltages, making it suitable for demanding environments. It adheres to IEC standards, ensuring compliance with international regulations.

Dimensions of the product are as follows: a net width of 1014 mm, height of 371 mm, and depth of 270 mm, with a total weight of 140 kg. The device is designed for easy installation and maintenance, with a recommended screwdriver size of M12 and a tightening torque of 70 N·m.
