ABB 1SDA072618R1

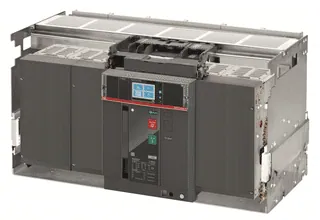

The E6.2H 5000 is a three-pole air circuit breaker equipped with an Ekip Hi-Touch LSI solid-state release. This model operates with a rated current of 5000 A and is suitable for alternating current (AC) applications up to 690 V. The device has an electrical durability rating of Ue =< 440 V for 3000 cycles and Ue between 500 to 690 V for 2000 cycles, with a maximum of 10 cycles per hour. Its mechanical durability is rated at 12,000 cycles, allowing for 60 cycles per hour.

It features a high short-circuit breaking capacity, rated at 100 kA across various voltage levels, ensuring effective protection for installations. With a rated impulse withstand voltage of 12 kV according to IEC 60947-2, the breaker is designed to handle significant surges. The rated insulation voltage is 1000 V AC, supporting its application in various industrial environments.

Measuring 803 mm in width, 425 mm in height, and 383 mm in depth, the unit weighs 120 kg. It is designed in accordance with IEC standards and is classified under the ETIM 9 category as a power circuit-breaker for transformer and installation protection. The E6.2H 5000 is also compliant with environmental standards, promoting a recyclability rate of 76.7% as per EN45555.
