ABB 1SDA072774R1

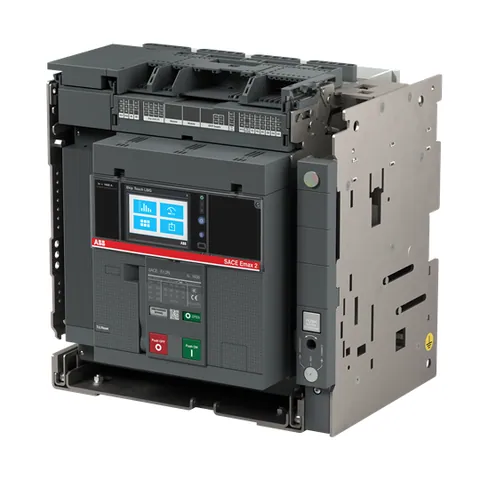

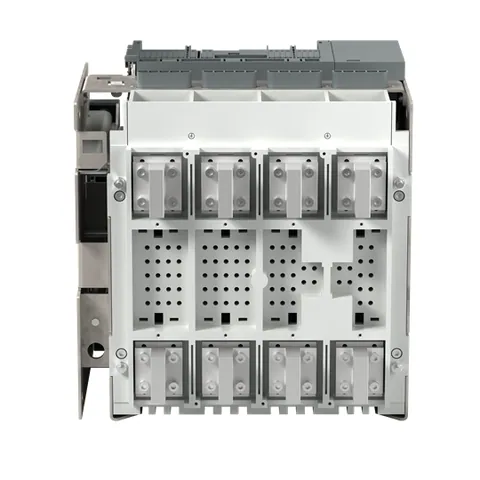

The E1.2C 1000 Ekip Touch LI serves as a four-pole air circuit breaker specifically engineered for AC usage, with a rated operational voltage of 690 V. It features solid-state release technology and is equipped with four auxiliary contacts. This model is suitable for both open and closed positions of the circuit breaker.

With a rated current of 1000 A, the device ensures a short-circuit breaking capacity of up to 50 kA at various voltages, including 400 V and 415 V AC. Its electrical durability is rated for 8000 cycles at voltages up to 440 V, and it can handle a mechanical durability of 20,000 cycles. The product also maintains a power loss of 156 W.

Conformance to IEC standards ensures reliability, while the rated insulation voltage of 1000 V AC and the impulse withstand voltage of 12 kV enhance its operational safety. The unit's dimensions are 348 mm width, 363.5 mm height, and 271 mm depth, weighing 20 kg making it suitable for various installations.

Additionally, the product adheres to environmental standards with a recyclability rate of 77.6% according to EN45555, showcasing its design for sustainable resource management.
