ABB 1SVR405601R2000

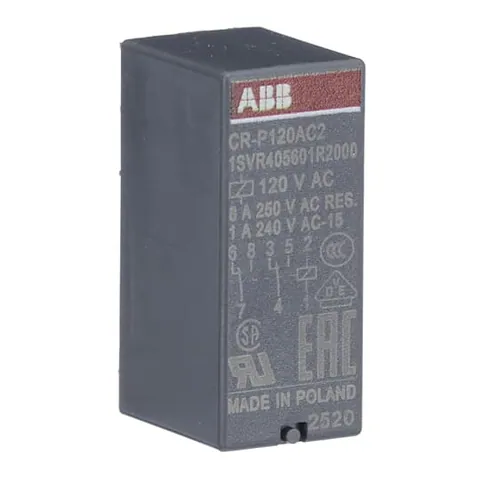

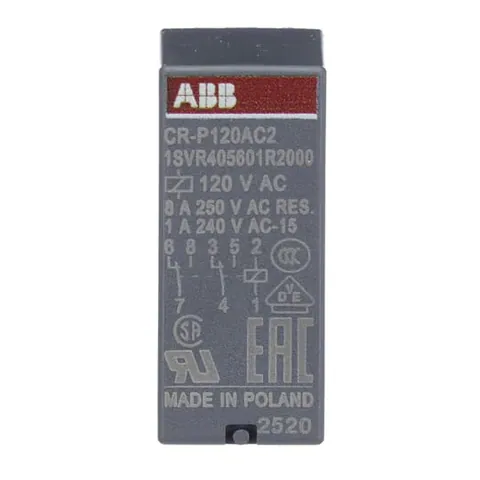

The CR-P120AC2 is part of the CR-P range of pluggable interface relays, specifically designed for printed circuit board applications. This relay operates with a rated control supply voltage of 120 V AC and offers two changeover (C/O) contacts with a maximum output signal capability of 250 V / 8 A. The relay supports a rated operational voltage of 400 V AC and is compliant with IEC/EN 61810-1 standards.

With dimensions of 12.7 mm in width, 15.7 mm in height, and 29 mm in depth, it is compact and facilitates easy integration into various systems. The relay is equipped with soldering pins for terminal connections, ensuring reliable performance in applications requiring a high degree of protection, rated at IP67.

Temperature resilience is notable, with operational ranges from -40 °C to +70 °C and storage capabilities extending from -40 °C to +85 °C. Furthermore, this relay can operate at altitudes up to 2000 m without derating.

For added versatility, accessories such as standard and logic sockets, along with pluggable function modules, are available. The CR-P120AC2 also adheres to RoHS compliance according to EU Directive 2011/65/EU and Amendment 2015/863.
