ABB 2CDS271001R0631

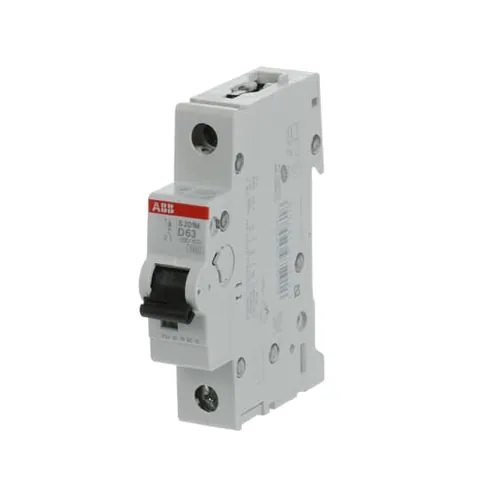

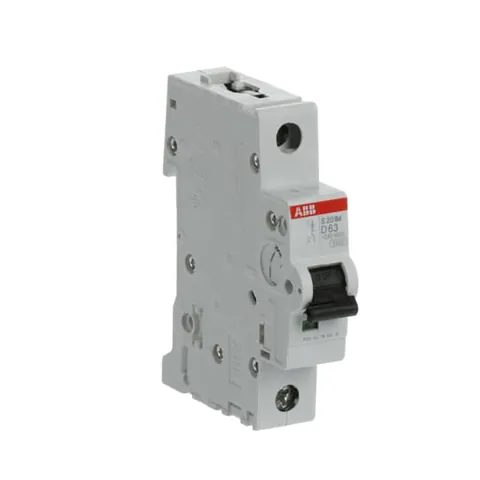

The S201M-D63 miniature circuit breaker features a tripping characteristic classified as D, designed for overload and short-circuit protection. It operates at a rated current of 63 A and supports operational voltages of up to 400 V AC, with a short-circuit capacity of 10 kA, complying with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

With a compact width of 17.5 mm, this device is mountable on standard DIN rails TH35-15 and TH35-7.5, accommodating various installation positions. The circuit breaker is engineered for operational temperatures ranging from -25°C to +55°C and is rated for overvoltage category III, ensuring its reliability in diverse environments.

Environmental considerations are integrated into its design, offering a recyclability rate of 80.7% per EN45555 standards and supporting take-back services for recycling. The S201M-D63 is also built to withstand significant mechanical stress, with a mechanical endurance of 20,000 cycles and compliance with RoHS and REACH directives, confirming its environmental safety.
