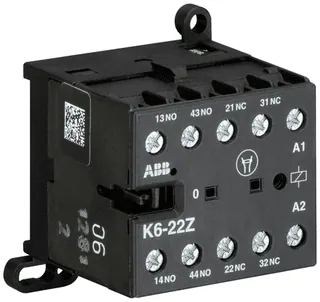

ABB K6-22Z-84

The mini contactor relay features a compact 4 pole design with screw terminals, ideal for applications where space is limited and reliability is essential. With a rated control circuit voltage of 110 ... 127 V AC, this relay is suitable for both residential and industrial use. It supports control signals up to 3 A at 400 V, ensuring effective operation in various applications.

This relay includes features such as a silent coil and an integrated switch position indicator. Additionally, it offers the option for rail or wall mounting, making it versatile for different installations. The device meets multiple standards, including IEC/EN 60947-1 and UL 60947-1, ensuring compliance with safety regulations.

With dimensions of 52.5 mm in width, 46.5 mm in depth, and 57.5 mm in height, it weighs 0.175 kg, making it compact enough for installation in tight spaces. The mini contactor relay supports a mechanical durability of up to 10 million operations, which enhances its reliability.

For environmental resilience, it operates effectively within an ambient temperature range of -25 °C to +55 °C and can be stored between -40 °C and +80 °C. The relay is also rated for a maximum operating altitude of 2000 m and is compliant with REACH and RoHS directives.
