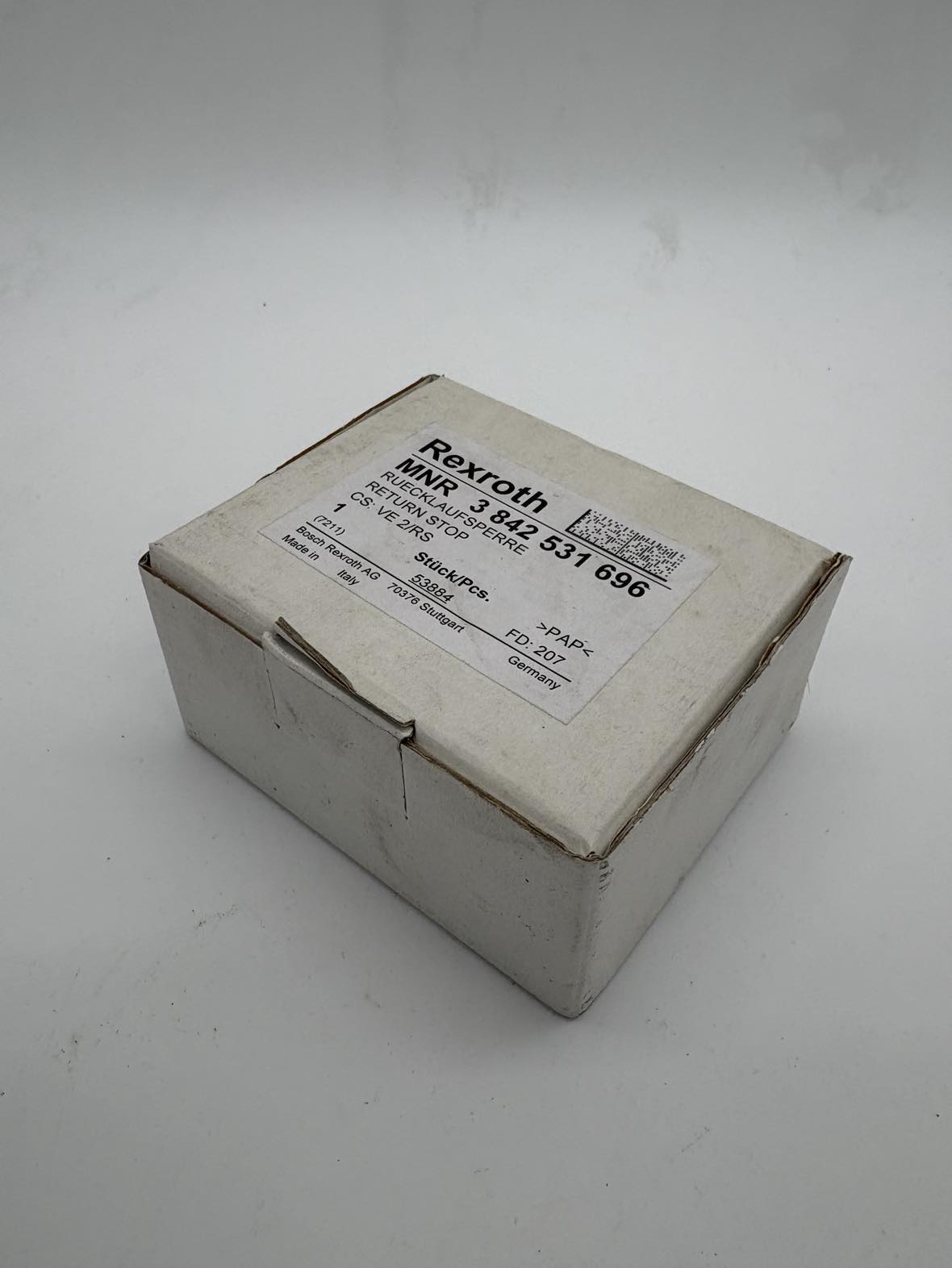

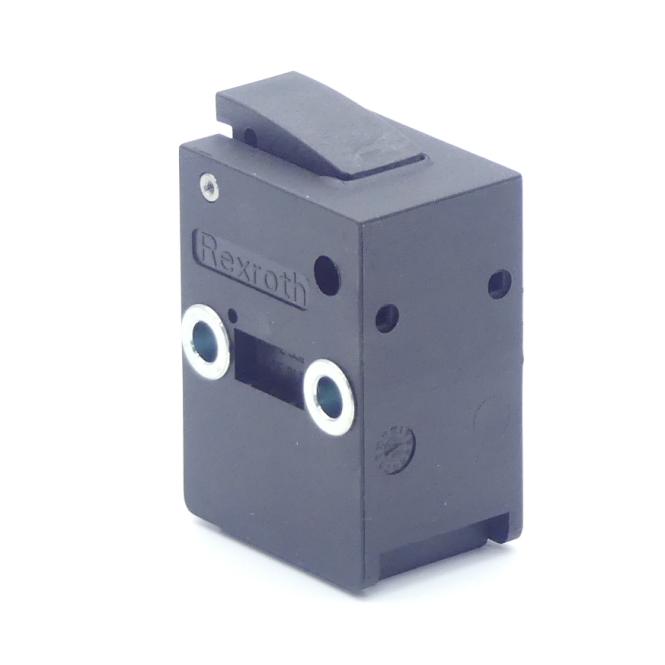

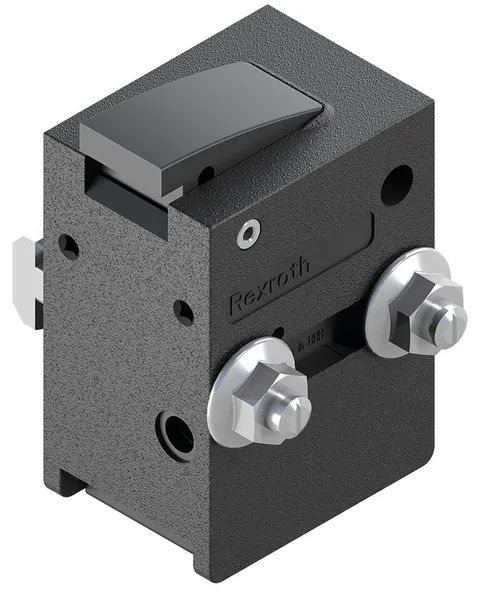

Bosch Rexroth 3842531696

VE 2/RS Return Stop - Spring-loaded safety catch - Can be used on the left or right - Use for one direction of transport, reversible operation not permitted - Can be combined with WT 2/E, WT 2, WT 2/F, WT 2/H, WT 2/F-H and WT 2/LS - Notice: The return stop VE 2/RS can only be installed outside the workpiece pallet surface on WT 2/H and WT 2/F-H - The return stop prevents the rebound impact of the workpiece pallet from the stop gate - The use of the VE 2/RS is especially recommended when the accumulation roller chain is used as conveyor medium in connection with undamped stop gates - In normal condition, the stop gate is moved into the lock position by a spring and the workpiece pallet overtravels the VE 2/RS in the direction of transport and is stopped against the direction of transport - Mounted inside the tracks, directly on the conveyor section
