Bosch Rexroth 3842535801

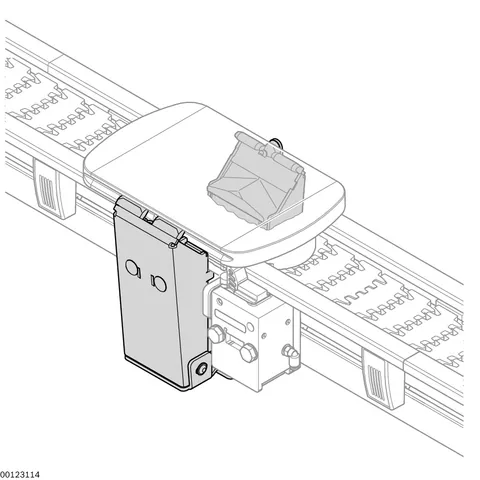

Position monitoring kit - The plier-shaped form of the positioning unit (PE) makes it highly resistant to dirt and shavings and thus suitable for dirty environments. - The WT is lifted approx. 1 mm above the transport level, thus eliminating the load on the conveyor chain during processing - Positioning accuracy in the direction of transport: ± 0.15 mm (transverse: ± 0.1 mm, height: ± 0.1 mm) - Maximum vertical press force (p = 4 bar): 400 N - Maximum retention force (p = 4 bar) in the direction of transport: 300 N - Suitable for retrofitting without disrupting the lateral guide - The switch bracket can be installed in any position - Minimum length of the workpiece pallets in order to incorporate the positioning unit:Size 65: L = 125 mmSize 90: L = 125 mm - 2 positioning units can be combined for workpiece pallets with L > 250 mm. For this, the positioning mandrel is removed from one of the PEs and the workpiece pallets are fitted with eccentric centering bushings by the customer - Position inquiry with assembly kit and 2 M12x1 sensors on the housing (sensor not in the scope of delivery) or with 3 842 535 150 on the cylinder - Maximum permissible torque in the plier area: 60 Nm
