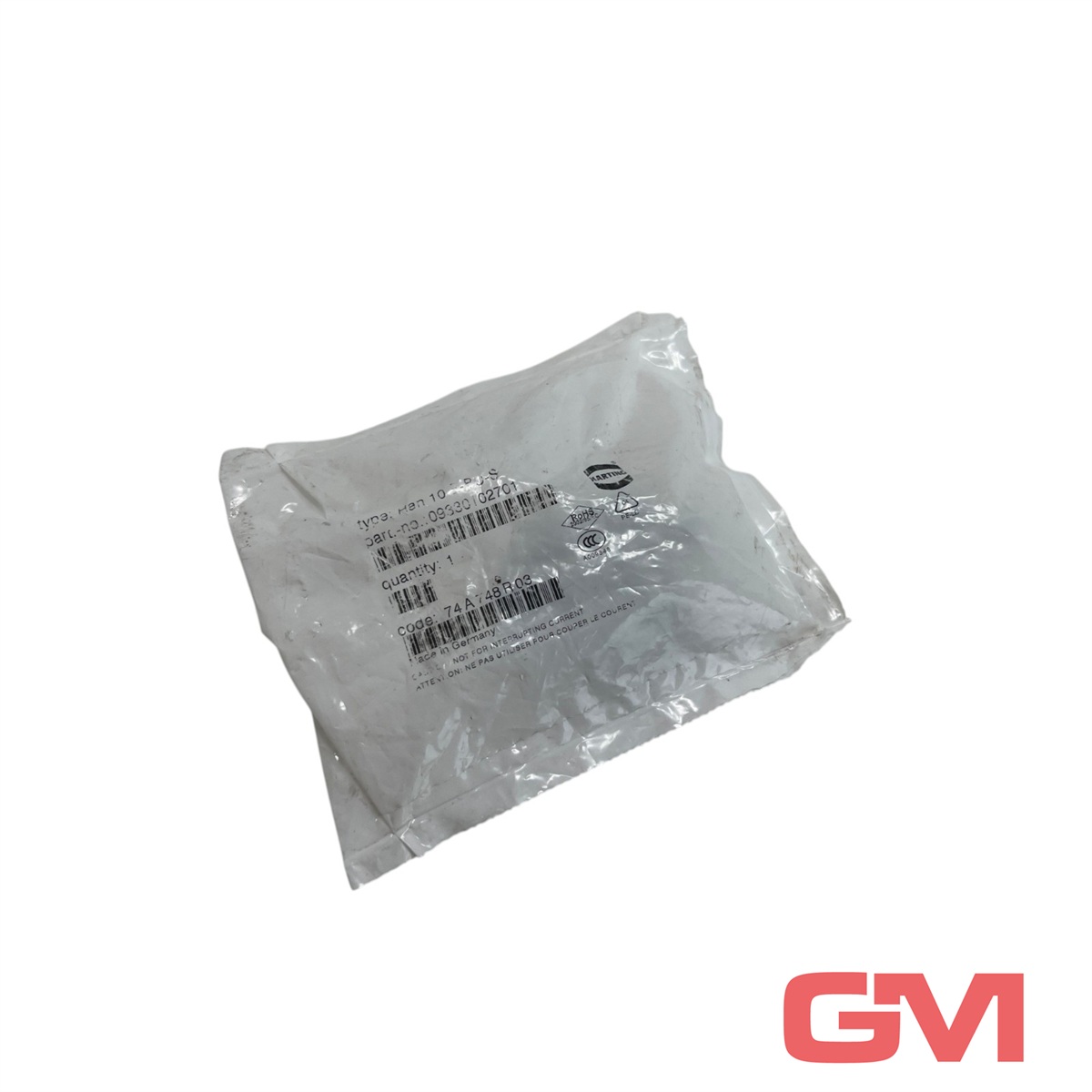

Harting 09330102701

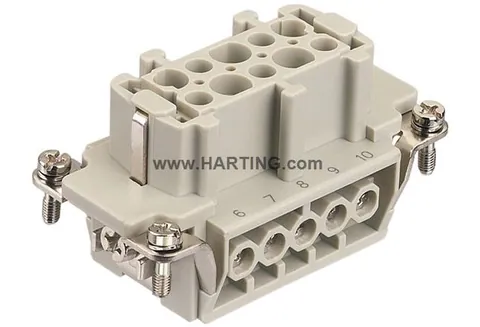

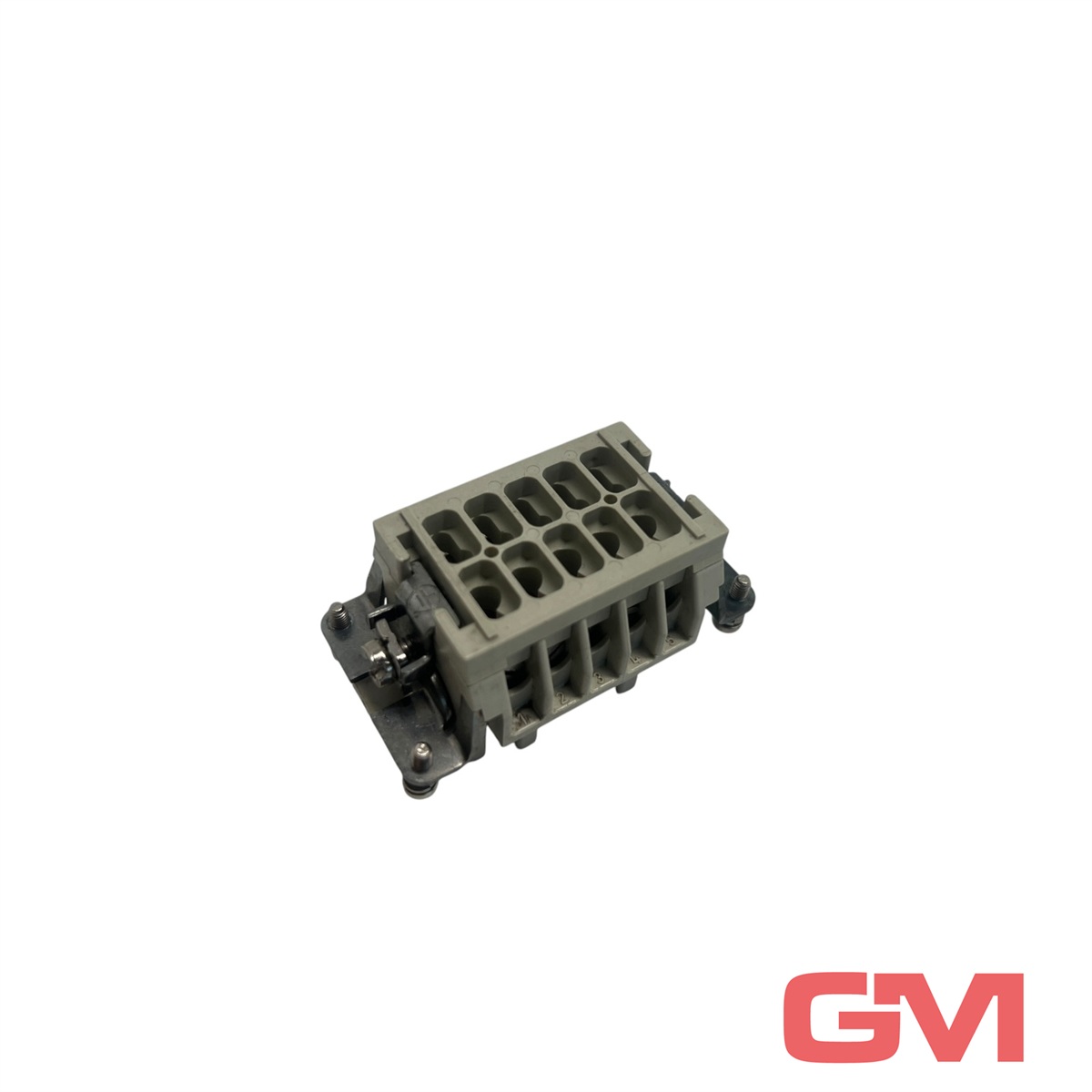

The Han 10E-bu-s Female Insert from Harting is designed for robust and reliable connections in industrial environments. Featuring a screw termination method, this insert ensures secure and stable connections, making it ideal for demanding applications. The insert is made from high-quality polycarbonate (PC) with a pebble grey color (RAL 7032), providing excellent durability and resistance to harsh conditions.

With a rated current of 16 A and a rated voltage of 500 V, the Han 10E-bu-s is suitable for a wide range of electrical applications. It offers a high level of safety with an insulation resistance of >10¹⁰ Ω and a contact resistance of ≤1 mΩ. The insert is designed to accommodate conductor cross-sections from 0.75 to 2.5 mm² (AWG 18 to AWG 14), making it versatile for various wiring requirements.

The Han 10E-bu-s insert complies with UL 94 V-0 flammability standards and is RoHS compliant with exemptions. It also meets the stringent requirements of EN 45545-2 for fire protection on railway vehicles, ensuring safety in critical applications. The insert is capable of withstanding temperatures ranging from -40 to +125 °C and supports up to 500 mating cycles, providing long-lasting performance.

This product is ideal for use in industrial automation, machinery, and transportation systems where reliable and secure electrical connections are essential.
