IFM AL5246

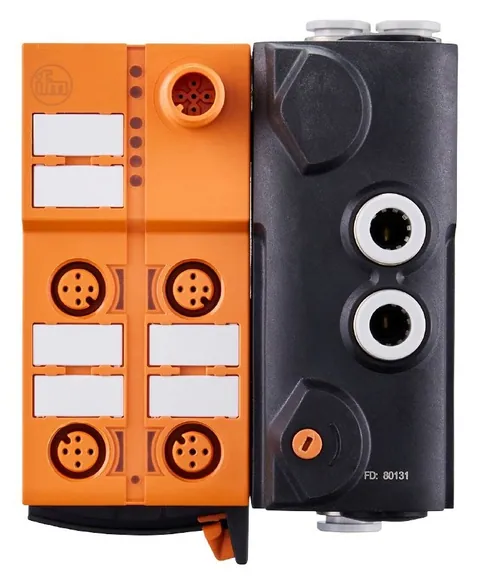

The IO-Link AirBox is designed for the decentralized triggering of cylinders and valve actuators, allowing for high energy efficiency by positioning the device close to the actuator. This model features a combination of an IO-Link device and a solenoid valve, which simplifies installation and wiring through its quick mounting technology.

With eight digital inputs and one pneumatic output, the device operates effectively in wet environments and is suitable for field installations. It supports operating voltages between 18 to 30 V DC, ensuring compatibility with a variety of systems.

The ambient temperature range for this device is from -10°C to 55°C, supporting a maximum relative humidity of 90% without condensation. Additionally, it is designed to operate at heights up to 4000 meters and has an IP65/IP67 protection rating, indicating its durability in challenging conditions. The dimensions of the housing are 109 x 85 x 52 mm, constructed from PA 6.6 and PA 6 materials, ensuring robust performance.

For effective communication, the device utilizes an IO-Link interface with a transmission rate of 38.4 kBaud, adhering to the SDCI standard of IEC 61131-9. It also incorporates various LED indicators for operational status, errors, and function display. The designation code for this unit is IOL AirBox 1x5/2 mono. 4x2DI.
