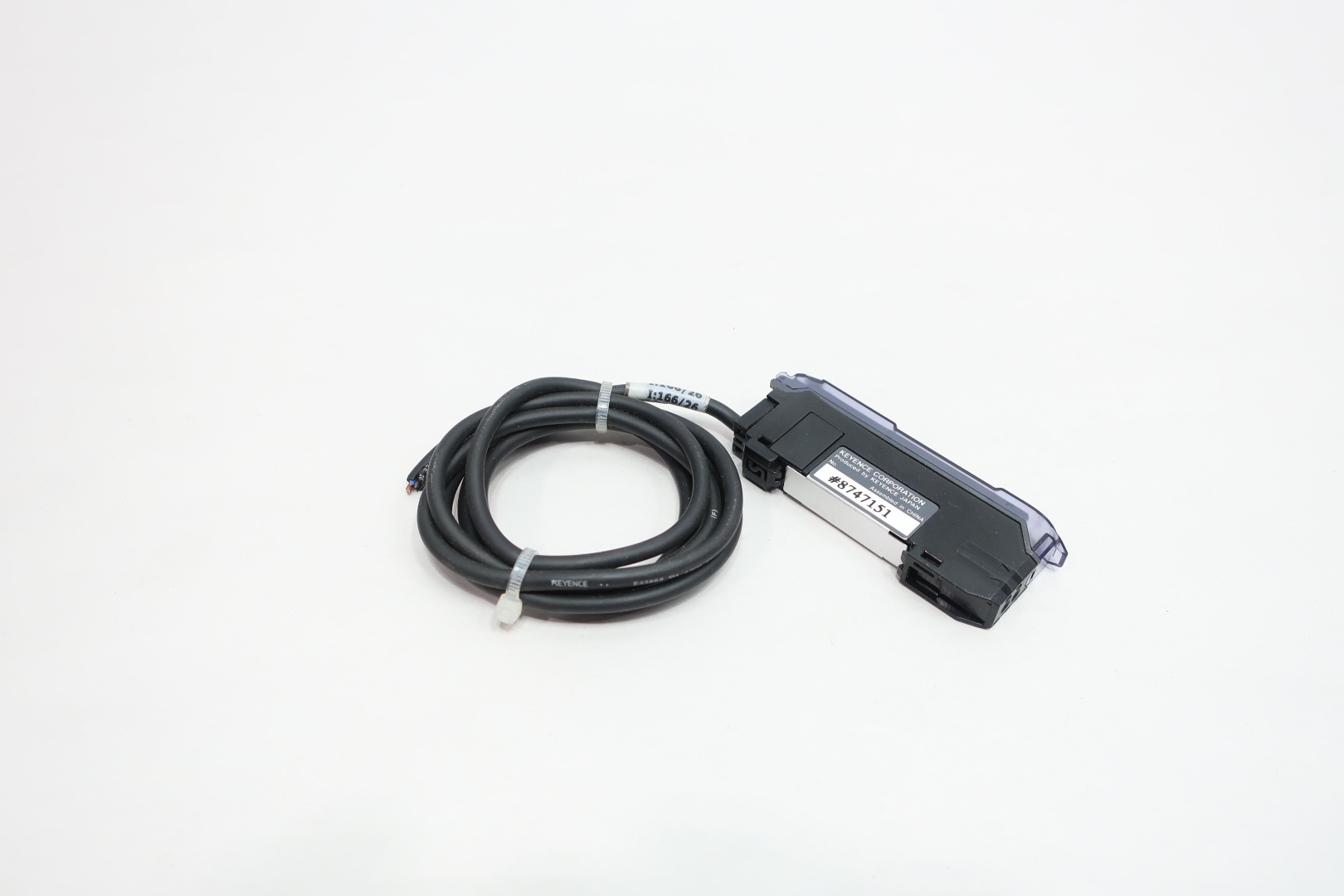

Keyence FS-V31P

The Keyence FS-V31P Fibre Amplifier is a top-tier solution for precise and reliable detection in industrial automation applications. This main unit, cable type amplifier is designed with a PNP output and offers exceptional performance with rapid response times ranging from 33 µs to 16 ms, catering to various operational needs. The device is equipped with a red, 4-element LED light source (wavelength: 640 nm) ensuring accurate detection.

The FS-V31P features a dual digital monitor with a 4-digit green LED indicator for preset values and a 4-digit red LED indicator for current values, providing clear and immediate feedback. The amplifier supports LIGHT-ON/DARK-ON output selection, and its detection mode is based on light intensity, with an automatic sensitivity-tracking function for enhanced accuracy.

Additional functionalities include a comprehensive timer function with multiple selectable modes such as OFF-delay, ON-delay, and one-shot timers, with durations ranging from 0.1 ms to 9,999 ms. The unit is built to withstand harsh environments, with an ambient temperature range of -10 to +55 °C, vibration resistance, and shock resistance.

The FS-V31P supports the connection of up to 16 expansion units, making it highly scalable for larger systems. Its compact size (30.3 mm H x 9.8 mm W x 71.8 mm D) allows for easy integration into various setups. This fibre amplifier is compliant with CE and UL standards, ensuring it meets rigorous safety and performance criteria.
