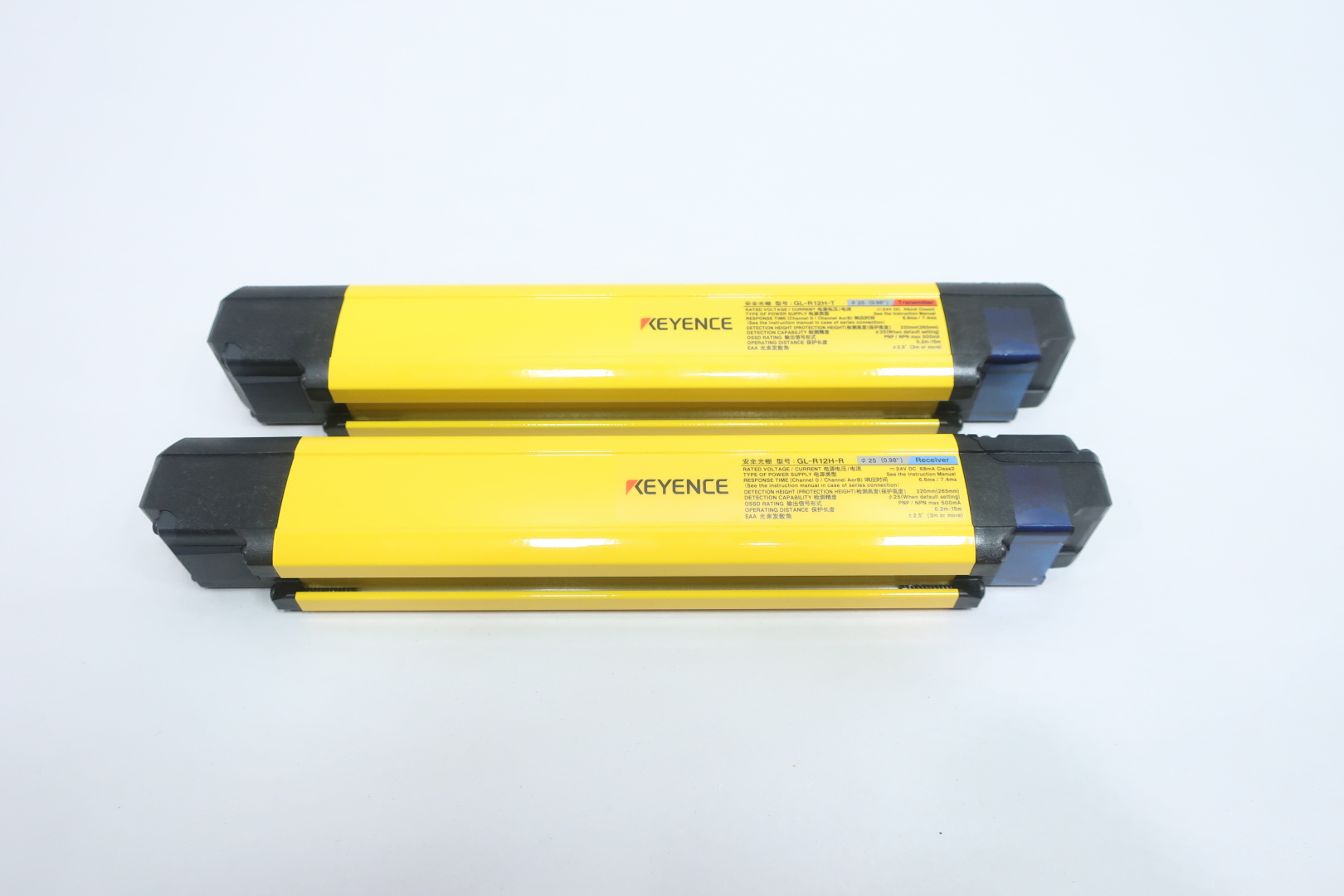

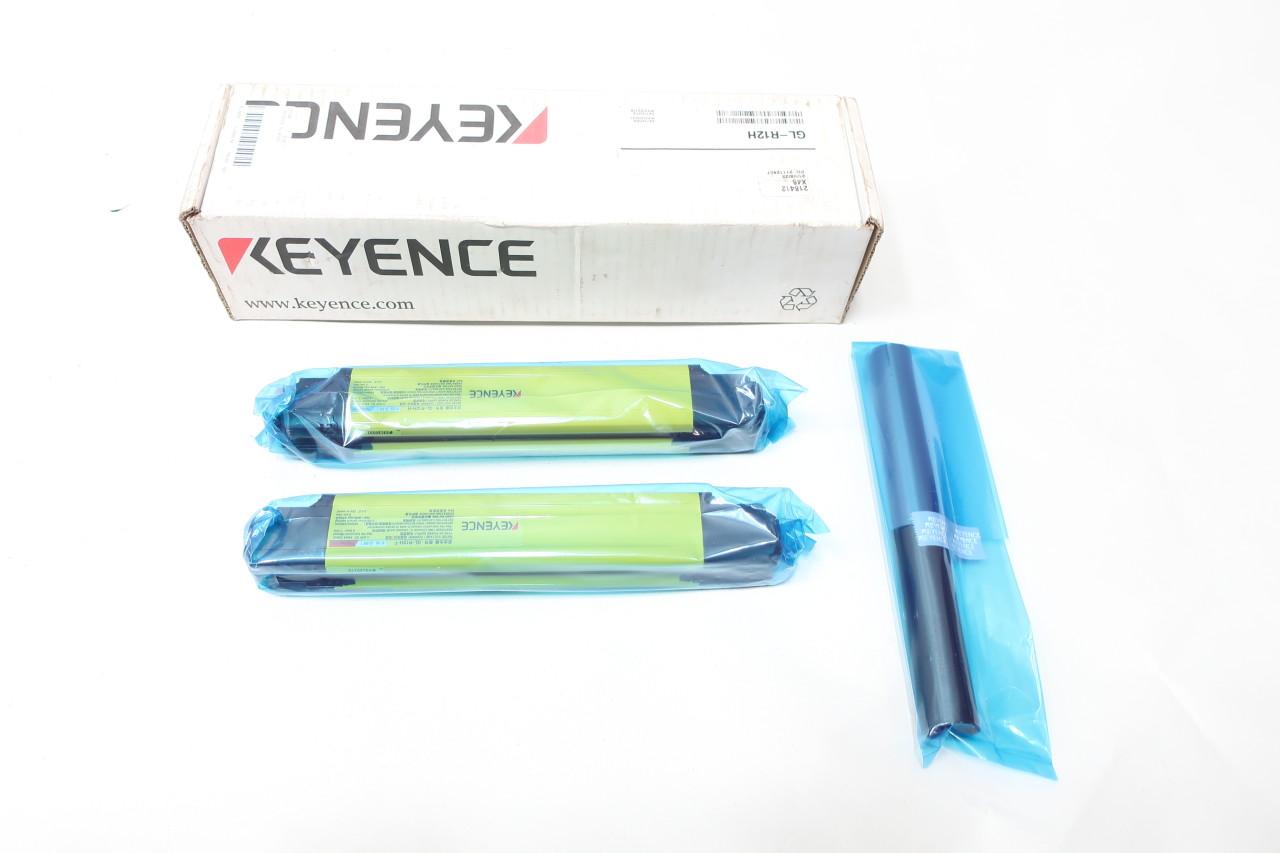

Keyence GL-R12H

The Keyence GL-R12H Hand-protection Type Main Unit is designed to provide robust safety measures in industrial environments. Featuring 12 optical axes, this unit ensures a high level of protection with a detection capability of ø25 mm and a detection height of 220 mm. The GL-R12H is equipped with an infrared LED light source and offers a detecting distance ranging from 0.2 to 15 meters, making it suitable for various applications.

This unit supports both optical and wire synchronization, ensuring seamless communication between the transmitter and receiver. The light interference prevention function allows for the operation of up to two GL-R systems without mutual interference. The control output consists of two transistor outputs, with a maximum load current of 500 mA, providing reliable performance in demanding conditions.

With compliance to international safety standards such as IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE) and IEC61508, EN61508 (SIL3), the GL-R12H guarantees top-tier safety and reliability. The unit is also environmentally resilient, boasting an enclosure rating of IP65/IP67 and the ability to operate in a wide range of temperatures and humidity levels.

Applications for the GL-R12H include safeguarding personnel in manufacturing lines, robotic work cells, and other automated processes where hand protection is critical. The robust construction, featuring an aluminum main unit case and polycarbonate front cover, ensures durability and longevity in industrial...
