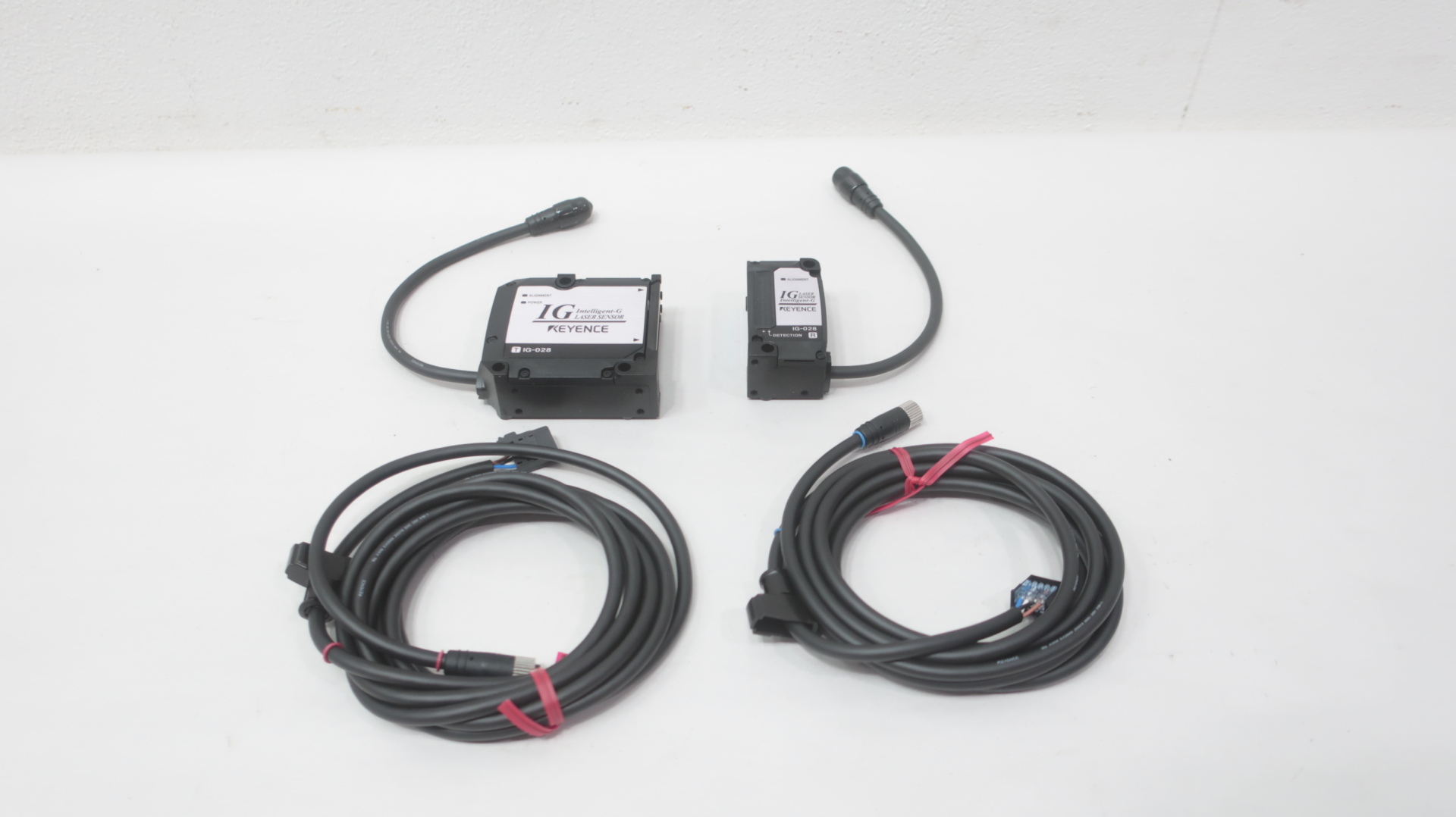

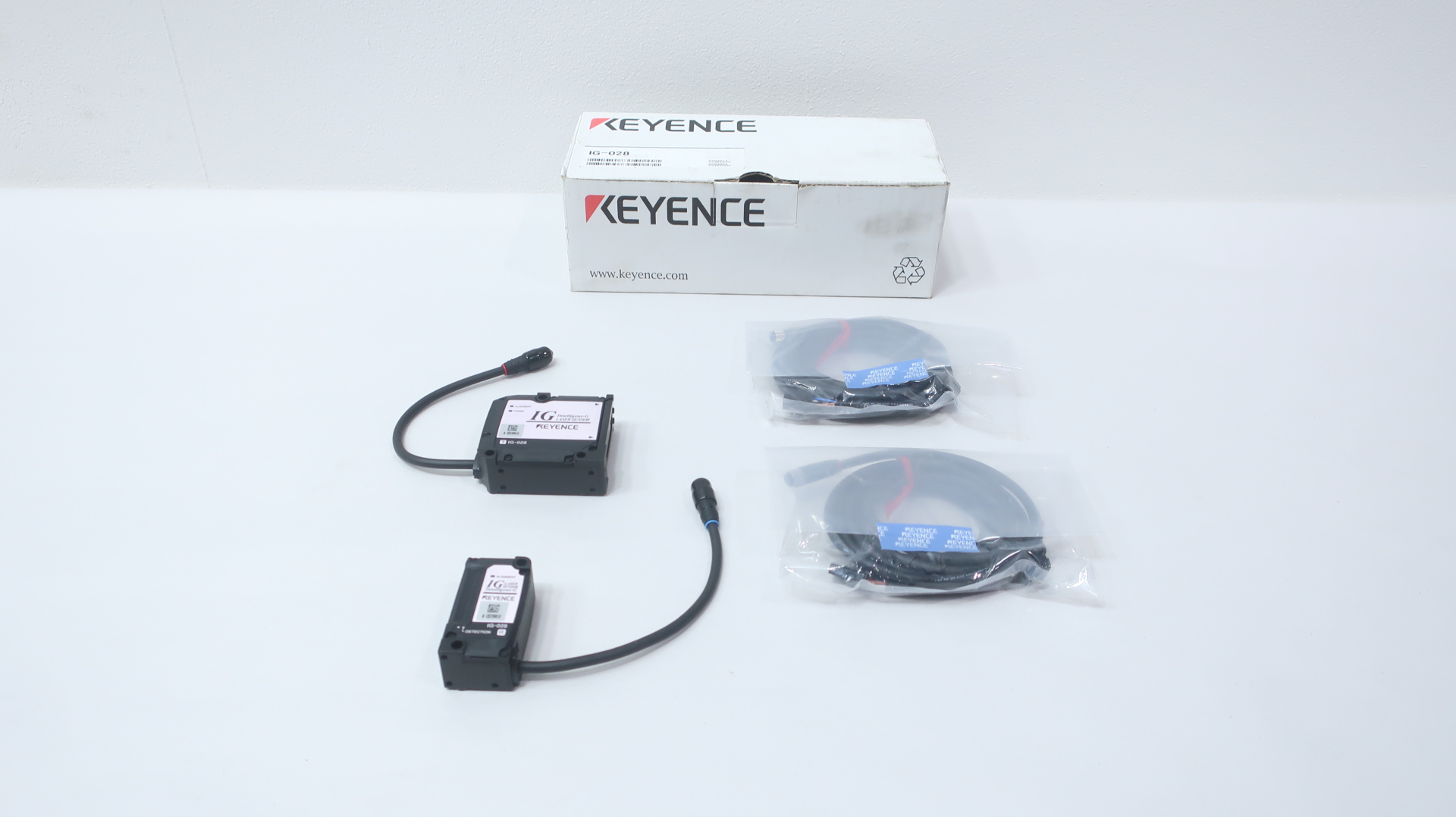

Keyence IG-028

The Keyence IG-028 Sensor Head utilizes a CCD method and a visible light semiconductor laser to deliver high-precision measurements. With a measurement range of 28 mm and a mounting distance of up to 1500 mm, this sensor head is ideal for a variety of industrial applications. The high sensitivity mode allows detection of objects as small as ø0.1 mm, ensuring precise and reliable performance.

Featuring a fast sampling cycle of 980 µs, the IG-028 is designed for rapid and accurate data acquisition. The sensor head includes both a transmitter and receiver, with optical axis alignment indicators and dual bar LED position monitors for easy setup and operation. The robust construction, including a zinc die-cast case and IP67 enclosure rating, ensures durability in harsh environments.

Key benefits include repeatability of 5 µm at 100 mm setting distance, linearity of ±0.1% of F.S., and temperature characteristics of ±0.01% of F.S./°C. The IG-028 is compliant with FDA Class 1 and IEC/JIS Class 1 standards, making it a reliable choice for precision measurement tasks.
