Mitsubishi FR-D720S-042SC-EC

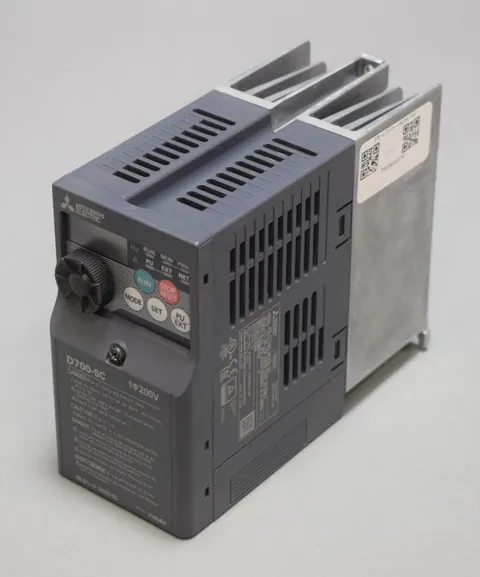

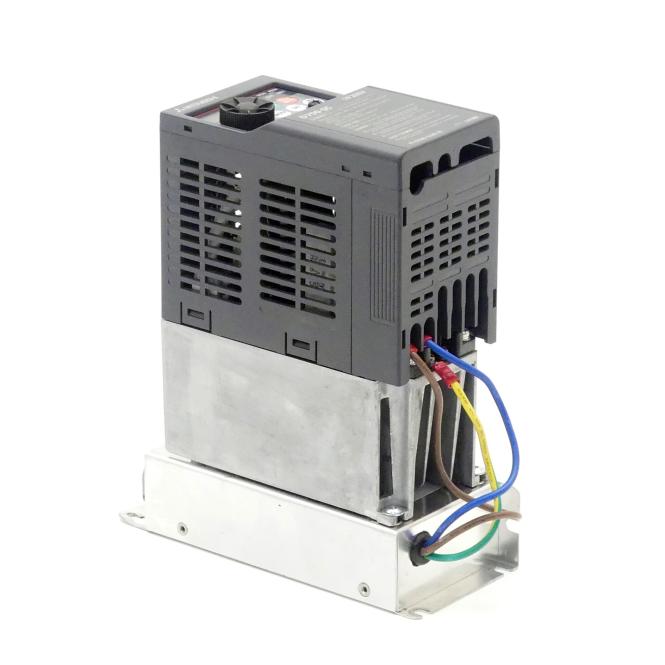

The Mitsubishi FR-D720S-042SC-EC Inverter is a compact and efficient solution for precise motor control in various industrial applications. With a rated power of 0.75kW and a rated current of 4.2A at 50°C, this inverter is designed to deliver reliable performance in demanding environments. It supports a wide voltage range of 200-240V AC and operates at frequencies from 0.2 to 400Hz, making it highly versatile.

This inverter features Magnetic Flux Vector Control, Soft-PWM/High Frequency PWM, and V/F Control methods, ensuring optimal motor performance and energy efficiency. The built-in 4-digit LED display provides clear and easy-to-read information, while the integrated Safe Torque Off (STO) function enhances safety during operation.

With 5 digital inputs, 1 transistor output, 1 relay output, 2 analog inputs, and 1 analog output, the FR-D720S-042SC-EC offers extensive connectivity options. The spring clamp terminal block ensures secure and reliable connections. Additionally, the inverter supports the MODBUS-RTU network protocol via its RS-485 port, enabling seamless integration into existing systems.

Designed with an IP20 protection class, this inverter is suitable for use in controlled environments. It is compliant with international standards such as CE, UL/cUL, EAC, and UKCA, ensuring high quality and reliability. The FR-D720S-042SC-EC is an excellent choice for applications requiring precise motor control, energy efficiency, and enhanced safety.
