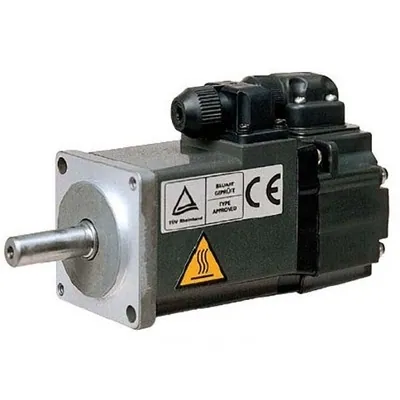

Mitsubishi HF-KP13

The Mitsubishi MELSERVO J3 AC Servo Motor from the HF-KP series is designed for applications requiring precise control and high-speed performance. This AC brushless rotary servo motor features a straight shaft and a built-in absolute feedback encoder with 18-bit resolution, ensuring accurate positioning and feedback. With a rated power of 100W (0.1kW) and a nominal torque of 0.32Nm, it is ideal for compact, high-output applications.

The motor operates at a rated speed of 3000rpm, with a maximum speed of 6000rpm, making it suitable for high-speed operations. Its low inertia design and small power capacity contribute to its efficiency and responsiveness. The motor is designed for natural cooling and operates on a 200Vac class supply voltage.

Featuring a 40x40mm flange mounting and an IP65 degree of protection, this servo motor is built to withstand demanding industrial environments. It is rated for operation in ambient temperatures ranging from 0 to +40°C and can be stored in temperatures from -15°C to +70°C.

Although the HF-KP13 model is discontinued, it remains a reliable choice for applications that benefit from the characteristics of a servo motor, such as compactness and high output. Its small size and high rotational speed make it an excellent choice for spindle motor applications.
