Murrelektronik 85002

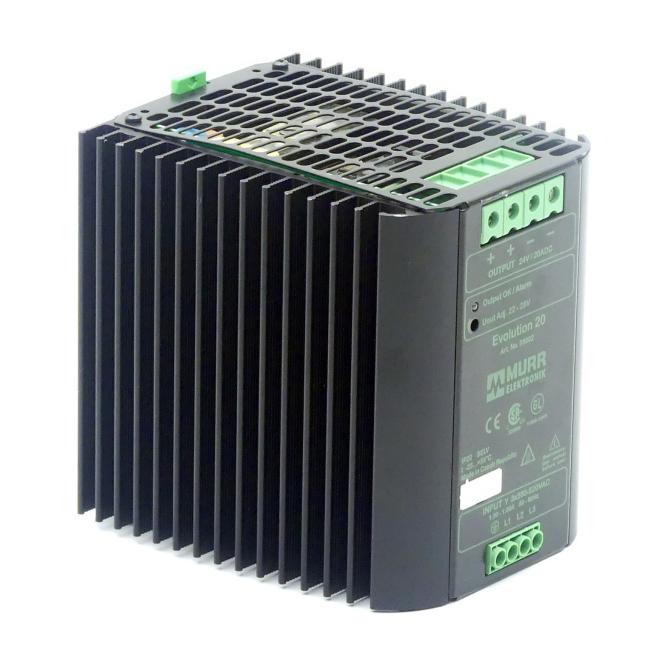

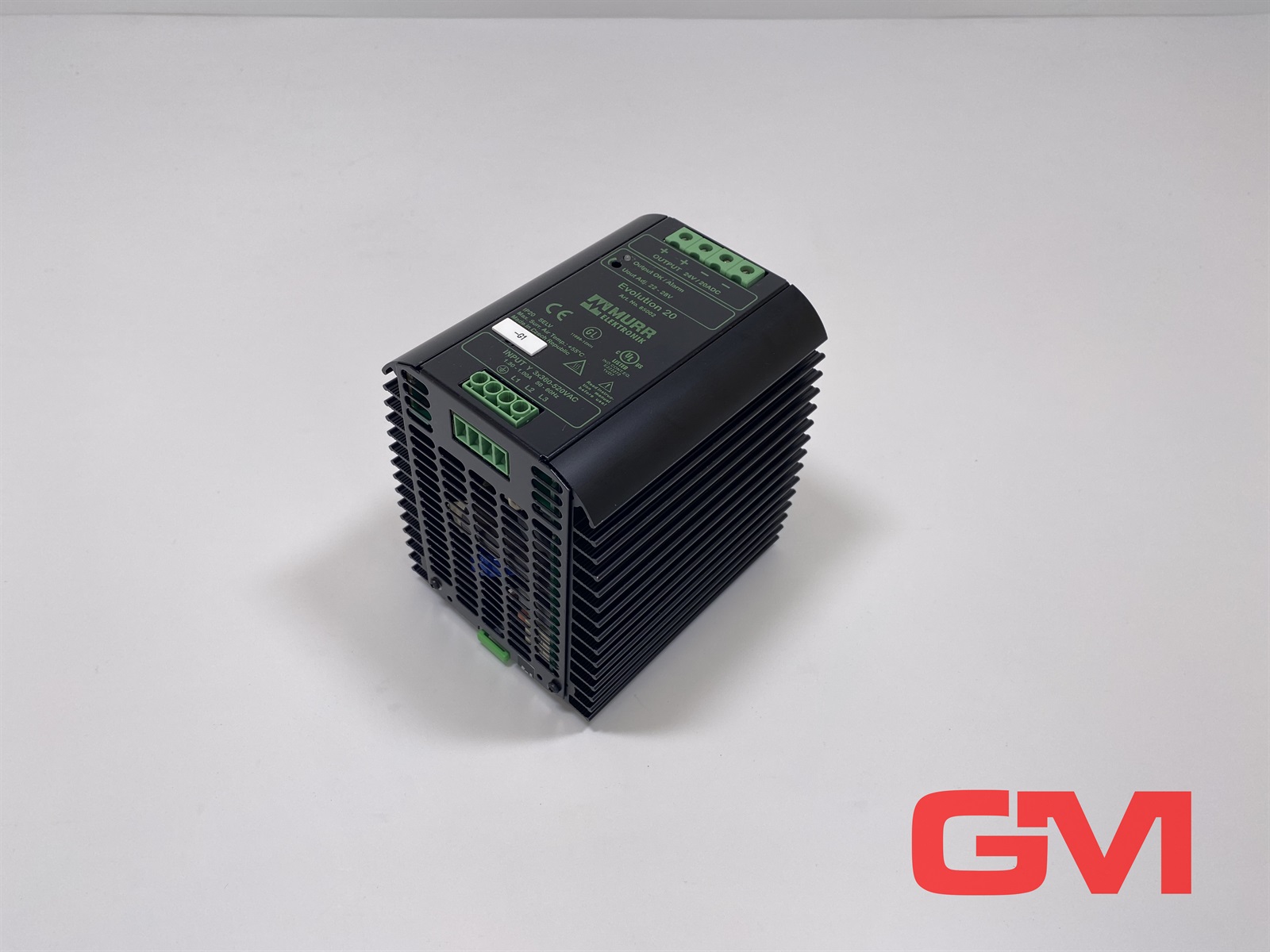

The Murrelektronik Evolution Power Supply 3-Phase is designed to provide a stable and adjustable DC output voltage ranging from 22 to 28 V with a maximum current of 20 A. This power supply is suitable for demanding industrial environments, offering high efficiency of up to 90% at 400 V AC and robust protection features including overload and short-circuit protection. The unit supports parallel and series connections, allowing for flexible integration into various systems.

Electrical Data: The power supply operates with a 3-phase input voltage between 360 and 520 V AC or 480 to 745 V DC, ensuring compatibility with a wide range of industrial power sources. It features a SELV security level and a power frequency of 50 to 60 Hz. The device can handle an inrush current of up to 19 A and includes external backup fuse protection per phase.

Mechanical Data: Compact and easy to install, the power supply measures 132 mm in height, 113 mm in width, and 136 mm in depth. It is designed for mounting on TH35 rails according to EN 60715 standards.

Environmental Characteristics: The unit is built to withstand harsh conditions, with an operating temperature range from -25 °C to 70 °C and a storage temperature range from -40 °C to 85 °C. It complies with EN IEC 61010-2-201 and EN 61204-3 standards, ensuring reliable performance in various environments.

Applications include automation systems, industrial machinery, and any scenario requiring a dependable and adjustable DC power source.
