NACHI 6914

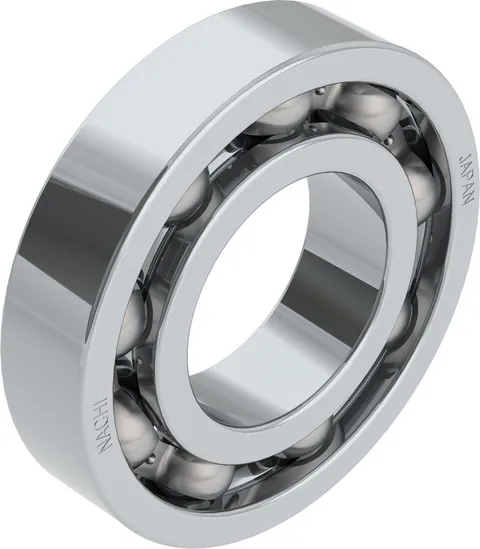

The Deep Groove Ball Bearing - Open 6914 features a bore diameter of 70 mm and an outside diameter of 100 mm. This bearing type is designed to accommodate both radial and axial loads, making it suitable for a wide range of applications due to its versatility. With a width of 16 mm, it is capable of high-speed operation, achieving a limiting speed of 6500 rpm when lubricated with grease and 7700 rpm with oil.

As a single row bearing, the 6914 is known for its simple design, which facilitates high-running accuracy. Open bearings, such as this one, require external lubrication, allowing for customization in various operating conditions. The dynamic load capacity is rated at 23700 N, while the static load capacity stands at 21100 N. This makes it a reliable choice for applications that demand consistent performance.
