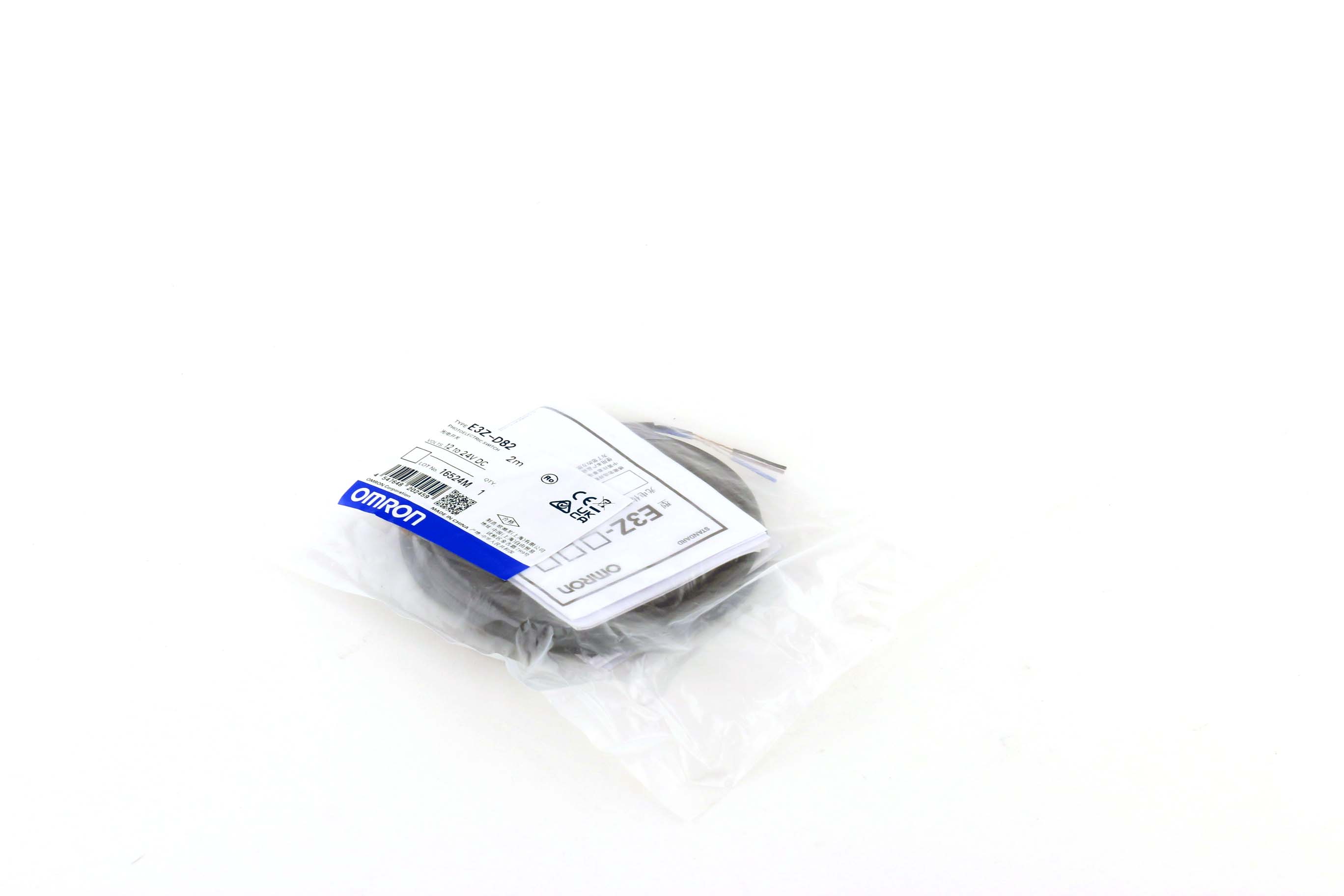

Omron E3Z-D82 2M

The Omron E3Z-D82 2M Compact Photoelectric Sensor is designed for precise and reliable object detection in industrial automation applications. Featuring a built-in amplifier and a square-shaped housing, this sensor offers a sensing distance of up to 1 meter with a diffuse-reflective sensing method. The sensor utilizes an infrared LED light source (860 nm) to ensure accurate detection of objects, even in challenging environments.

This pre-wired model comes with a 2-meter cable, making it easy to install and integrate into existing systems. The sensor supports a PNP open collector output, with a maximum load current of 100 mA and a residual voltage of 2 V max. It also includes protective circuits for output short-circuit protection, output reverse polarity protection, and power supply reverse polarity protection.

The E3Z-D82 sensor is equipped with both an operation indicator (orange) and a stability indicator (green) to provide clear visual feedback on its status. It offers a fast response time of 1 ms max. for both operation and reset, and features a single-turn sensitivity adjustment for easy setup.

Built to withstand harsh industrial environments, the sensor operates within a temperature range of -25 to 55 ℃ and a humidity range of 35 to 85%. It is also highly durable, with an IP67 protection rating, vibration resistance, and shock resistance. The case is made of polybutylene terephthalate (PBT) and the lens is constructed from denatured polyarylate, ensuring long-lasting...
