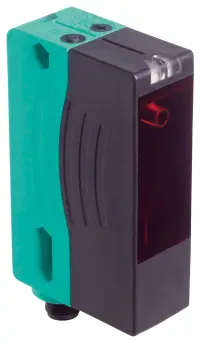

Pepperl+Fuchs 295835

The distance sensor operates using Pulse Ranging Technology (PRT) for precise object measurements. With a detection range of up to 8 meters, it utilizes modulated visible red light from a laser diode, classified as Laser Class 1. The sensor's maximum object distance can vary, detecting objects within Q1: < 60 mm and Q2: 500 ... 1400 mm. The wavelength of the laser light is 660 nm, and the beam divergence is 1 mrad.

In terms of electrical specifications, the device requires an operating voltage between 10 ... 30 V DC and has a no-load supply current of ≤ 125 mA at 24 V DC. It features 2 push-pull (4 in 1) outputs that are short-circuit and reverse polarity protected, with a maximum switching voltage of 30 V DC and a switching frequency of 50 Hz.

Designed for a broad range of applications, it operates effectively in ambient conditions ranging from -30 to 60 °C and has a storage temperature range of -30 to 70 °C. The sensor is housed in a durable IP67 rated plastic enclosure, ensuring protection against dust and water ingress.

This sensor is compliant with various standards including EN 60947-5-2 and IEC 60825-1:2007, and features certifications such as cULus Listed and EAC conformity, highlighting its adherence to safety and performance regulations. The Designation Code VDM28-8-L1-7342 signifies its specific model for reference.
