Pepperl+Fuchs 302645

The retroreflective sensor is engineered for standard applications and is equipped with a polarization filter to enhance performance. It has an effective detection range of 12 m and utilizes a red LED light source, emitting modulated visible red light to facilitate accurate detection.

This model, designated as RL39-54/32/40a/73c/82a-Y302645, includes a sensitivity adjuster and supports light/dark switching modes. The sensor operates within a voltage range of 10 ... 30 V DC and has a no-load supply current of ≤ 20 mA, ensuring efficient power management.

Operational reliability is enhanced with features such as a pre-fault output and a PNP output configuration, which is short-circuit and reverse polarity protected. The sensor provides a stability alarm output that activates when the operating reserve is insufficient.

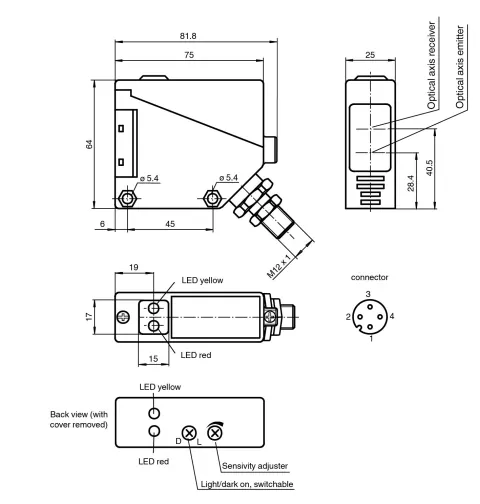

Built to withstand environmental challenges, the device has a protection class of IP54 and functions effectively within a temperature range of -25 ... 55 °C. The compact design has dimensions of 64 mm height, 25 mm width, and 75 mm depth, with a weight of approximately 100 g.
