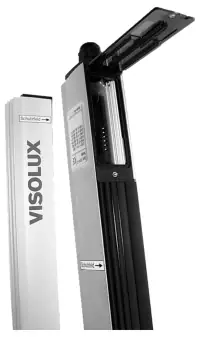

Pepperl+Fuchs 417970

The light grid model LG8-G-150-K-2-F is designed for precise detection with a field height of 235 mm and a beam gap of 30 mm. It incorporates 8 beams and offers an effective detection range extending from 800 mm to 1500 mm, making it suitable for various applications requiring reliable performance.

Utilizing modulated infrared light as its light source, this unit operates efficiently within an ambient light limit of 50,000 Lux. The sensitivity is adjustable via a calibration input, allowing customization to meet specific operational needs.

Electrical specifications indicate an operating voltage range of 24 to 28 V DC, with a ripple of 5%. The output is configured for dark-on operation, providing a PNP signal that is short-circuit protected. The maximum switching voltage is 28 V DC, with a switching current capability of up to 100 mA and a response time of 10 ms.

For environmental resilience, the device is rated with an IP54 degree of protection, ensuring it operates effectively within an ambient temperature range of -15 °C to 50 °C. The housing is constructed from aluminum, while the optical face is made from PMMA, offering durability and clarity.

Compliance with the EMC Directive 2004/108/EC and relevant standards such as EN 60947-5-2:2007 ensures that the light grid meets necessary safety and performance criteria, making it a reliable choice for industrial automation applications.
