Phoenix Contact 1619189

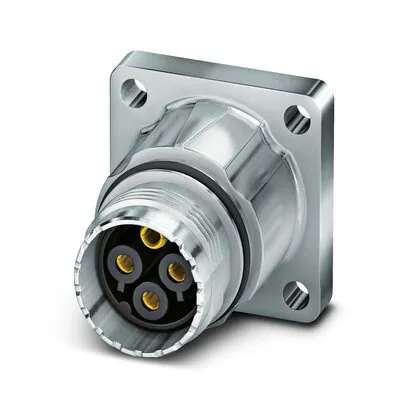

The device connector designed for front mounting features a straight configuration compatible with both standard and SPEEDCON interlocks. It incorporates M17 threading and accommodates a connection profile of 3+PE, allowing for effective power applications.

This connector utilizes a socket contact type and includes a robust crimp connection method. It is shielded for enhanced protection and rated with a degree of protection of IP67, ensuring reliable performance in challenging environments. The flange dimensions measure 25.75 mm x 25.75 mm, with a mounting type that supports square flange installation using four mounting holes of Ø 3.2 mm.

Operating under a nominal current of 25 A and nominal voltage of 630 V, the connector is suitable for various applications. It is designed to withstand significant environmental conditions, with an operational temperature range from -40 °C to 125 °C and an altitude tolerance of up to 3000 mm. The rated surge voltage stands at 6 kV, making it capable of handling demanding electrical loads.

Compliance with safety standards is essential, as the connectors should not be connected or disconnected under load to prevent damage or safety hazards. This model is part of the ST series, with the designation code being ST-3ES1N8AWK00S.
