Phoenix Contact 1697140

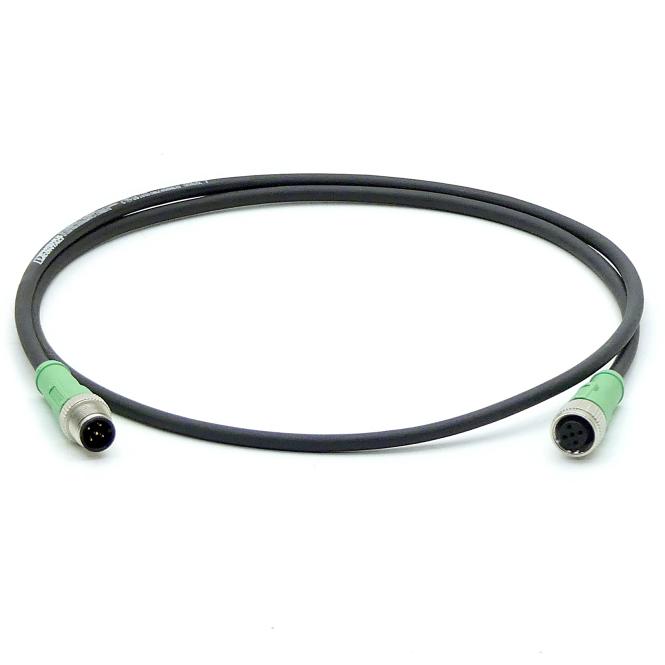

The Sensor/actuator cable - SAC-5P-M12MS-M12FS/.../... - 1697140 from Phoenix Contact is a robust and versatile solution designed for industrial automation applications. This 5-position cable features straight M12 connectors with A-coding on both ends, ensuring secure and reliable connections in demanding environments. The cable length is customizable, ranging from 0.2 to 40 meters, making it adaptable to various installation requirements.

Constructed with a halogen-free PUR outer sheath, this cable is both durable and environmentally friendly. The TPU grip body is self-extinguishing and hardly inflammable, providing additional safety in industrial settings. The connectors are made from nickel-plated zinc die-cast, offering excellent corrosion resistance and mechanical stability.

With an insulation resistance of ≥ 100 MΩ and a nominal voltage rating of 48 V AC/60 V DC, this cable is designed to handle the electrical demands of modern automation systems. The contact materials include CuSn with Ni/Au surface plating, ensuring reliable signal transmission and long-term performance. The cable is also rated for over 100 insertion/withdrawal cycles, making it suitable for applications requiring frequent connections and disconnections.

This sensor/actuator cable complies with the UL 94 HB flammability rating and is designed for use in environments with a pollution degree of 3. It is particularly well-suited for use in robots and drag chains, where flexibility and durability are...
