Phoenix Contact 1703661

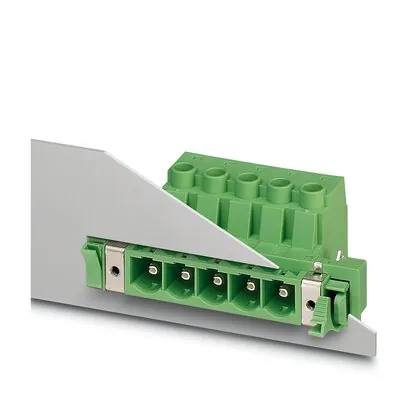

The Feed-through plug DFK-PC 16/ 7-STF-SH-10,16 is designed for high-performance electrical connections, accommodating a nominal cross section of 16 mm². It supports a nominal current of 76 A and is rated for a voltage of 1000 V, ensuring reliability in demanding applications.

Constructed with a silver contact surface, this male connector features a total of 7 positions within a single row and allows for 7 connections using a screw connection method complete with a tension sleeve. The pitch measures 10.16 mm, and the locking mechanism is facilitated through screw locking for secure mounting.

The connector is part of the DFK-PC 16/..-STF-SH product range, offering compatibility with the COMBICON PC 16 system. It is engineered for a conductor to PCB connection direction of 0 °, with a solder pin length of 4.1 mm. The mounting type is a screw flange, and the product is packaged in cardboard.

Compliance with various standards ensures that the connector meets the necessary requirements for electrical safety and performance. The insulating material is PA (polyamide), contributing to its durability and effectiveness in a range of environmental conditions.
