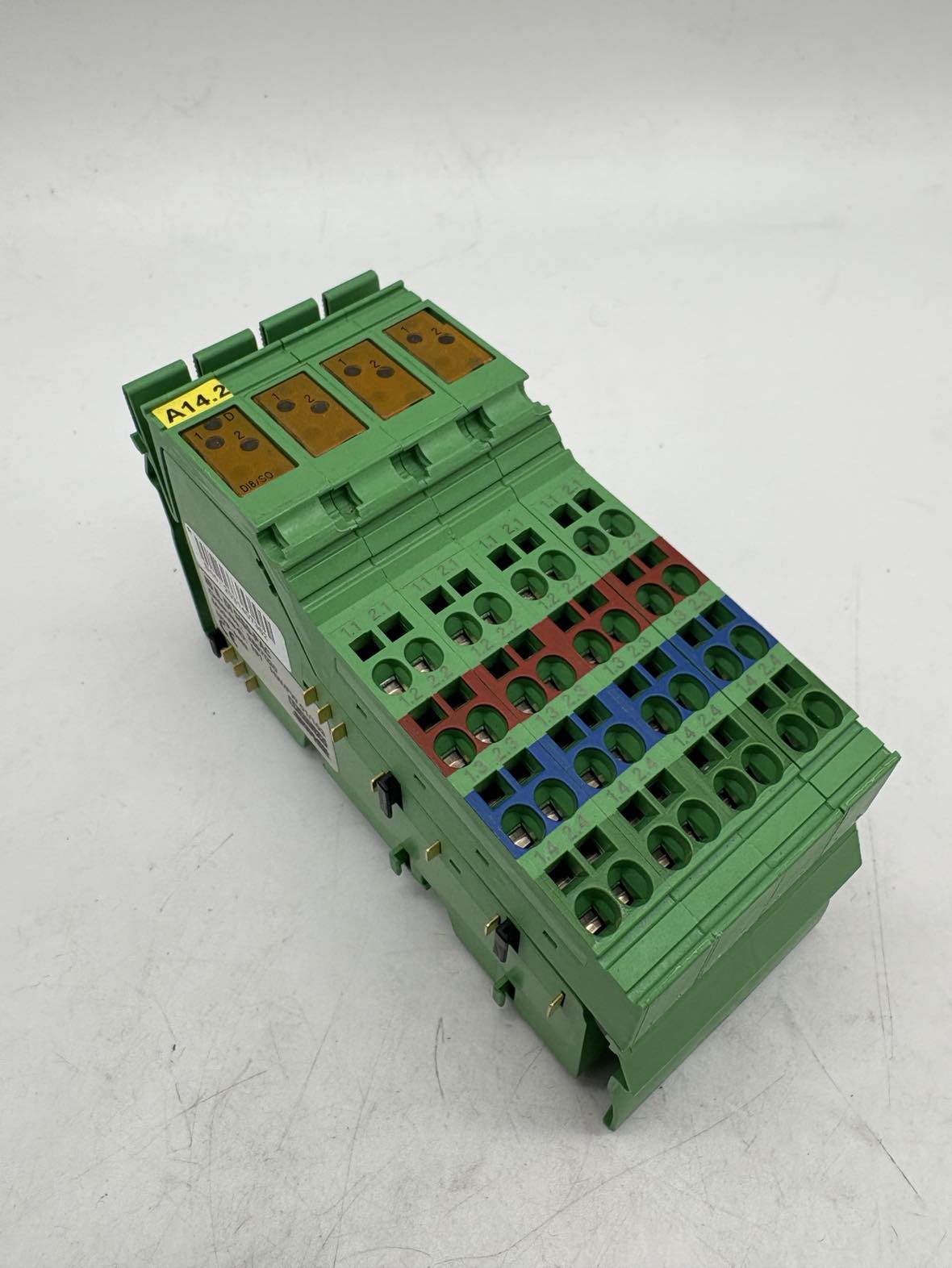

Phoenix Contact 2897020

The IB IL DI 8/S0-PAC functions as an inline digital input terminal, equipped with 8 digital inputs for S0 counter applications. It operates at a nominal input voltage of 24 V DC, utilizing a 4-conductor connection technology. The device supports a maximum transmission speed of 500 kbps within the local bus system.

With dimensions of 48.8 mm in width, 119.8 mm in height, and 71.5 mm in depth, it is designed for installation within control cabinets. The housing offers an IP20 degree of protection, ensuring suitability for industrial environments. This product is characterized by a modular design and includes inline connectors and marking fields for easy identification and connection.

It operates under a supply voltage range of 19.2 V DC to 30 V DC, with a maximum current draw of 2 A including sensor supply. The inline terminal can withstand ambient temperatures ranging from -25 °C to 55 °C and operates effectively under air pressure conditions from 80 kPa to 106 kPa. Additionally, it is compliant with relevant IEC and DIN standards, providing reliable performance in various industrial applications.
